SKU: 110811

| Model: B200

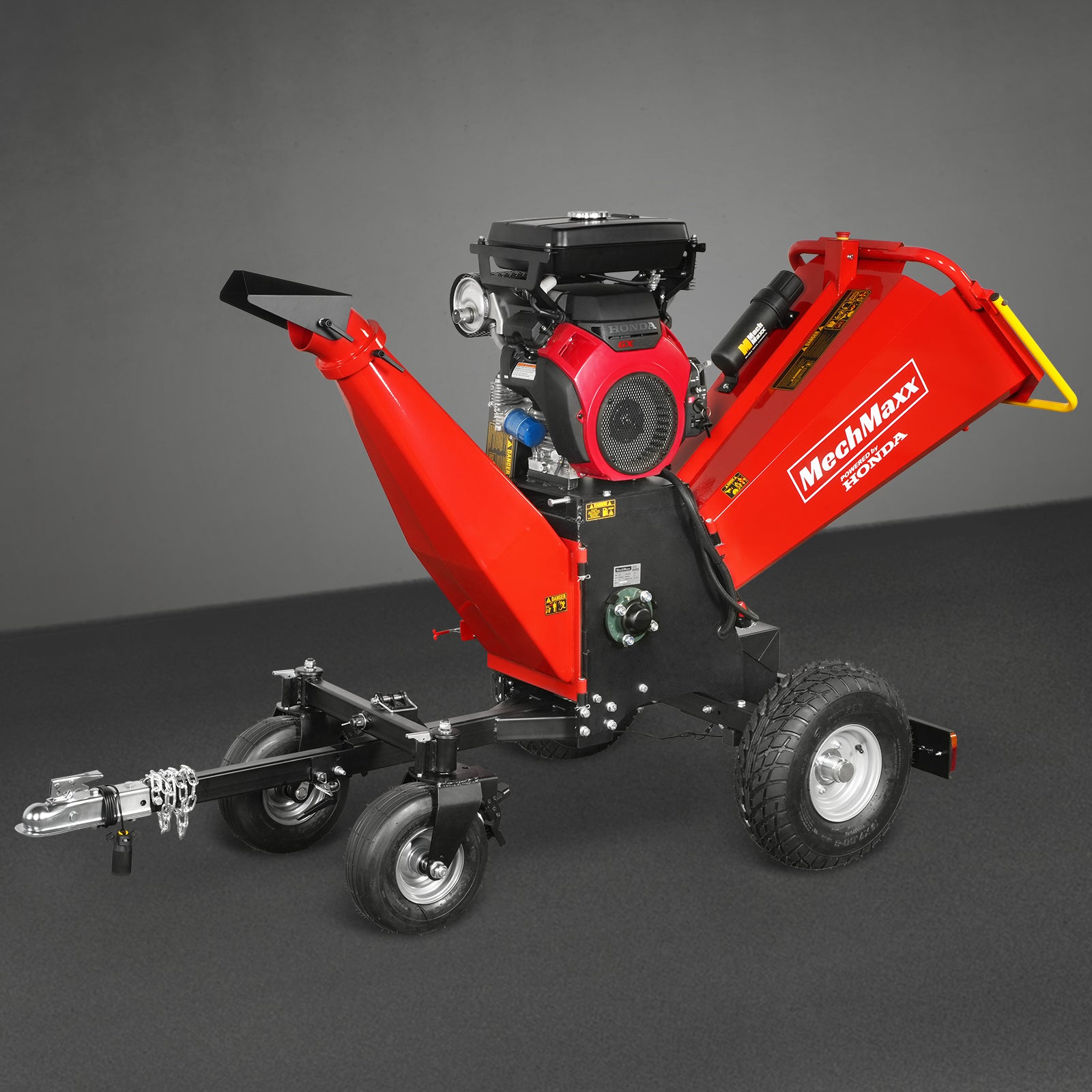

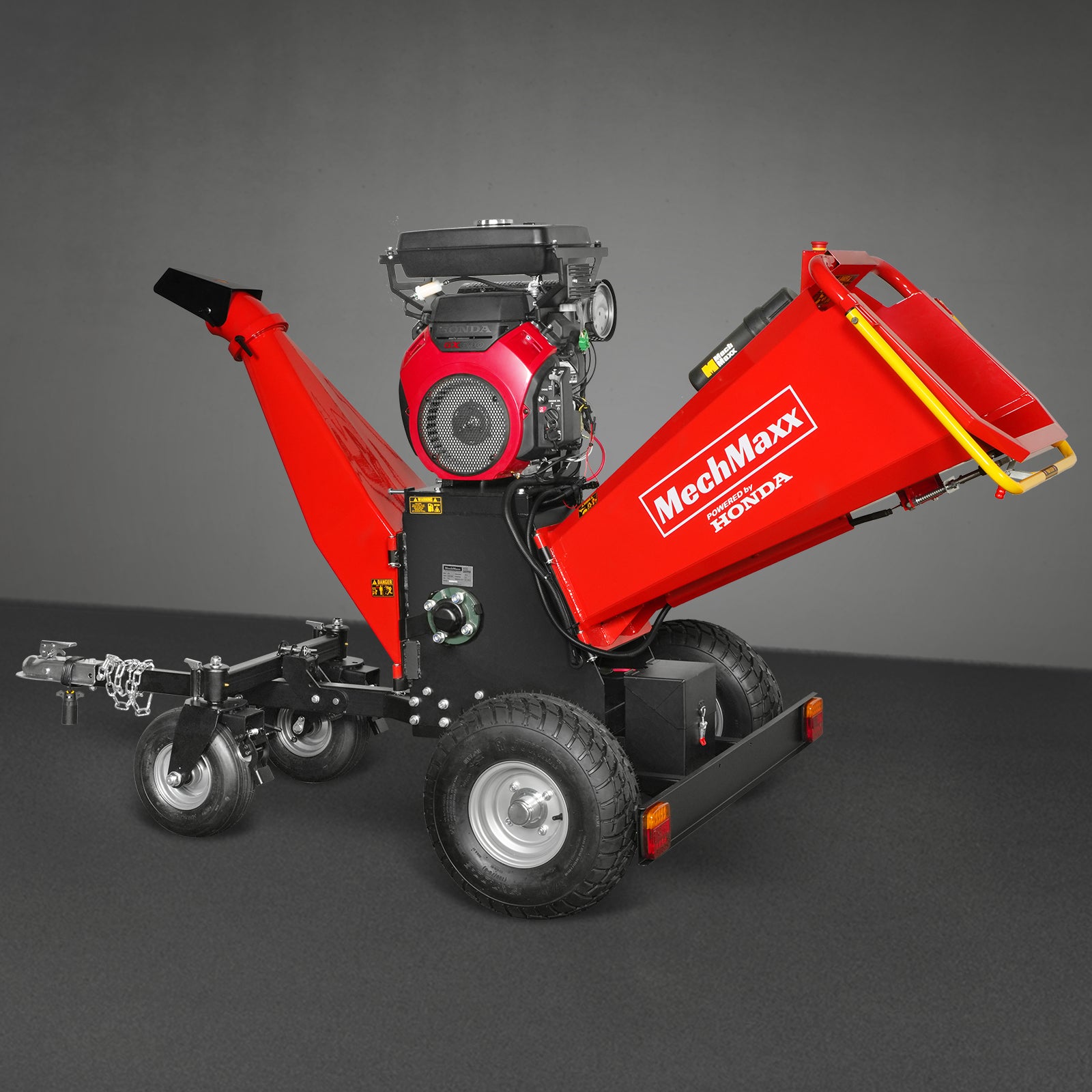

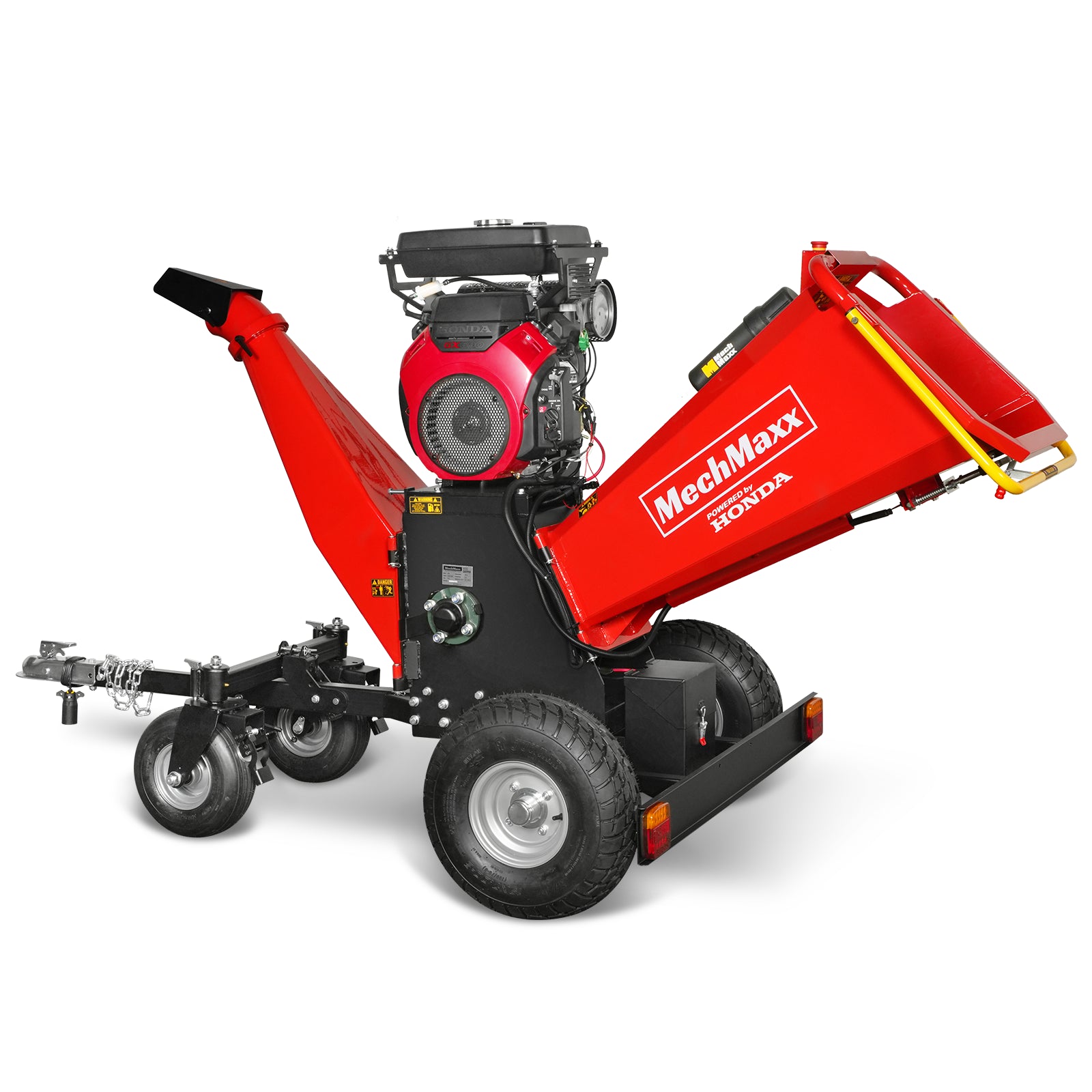

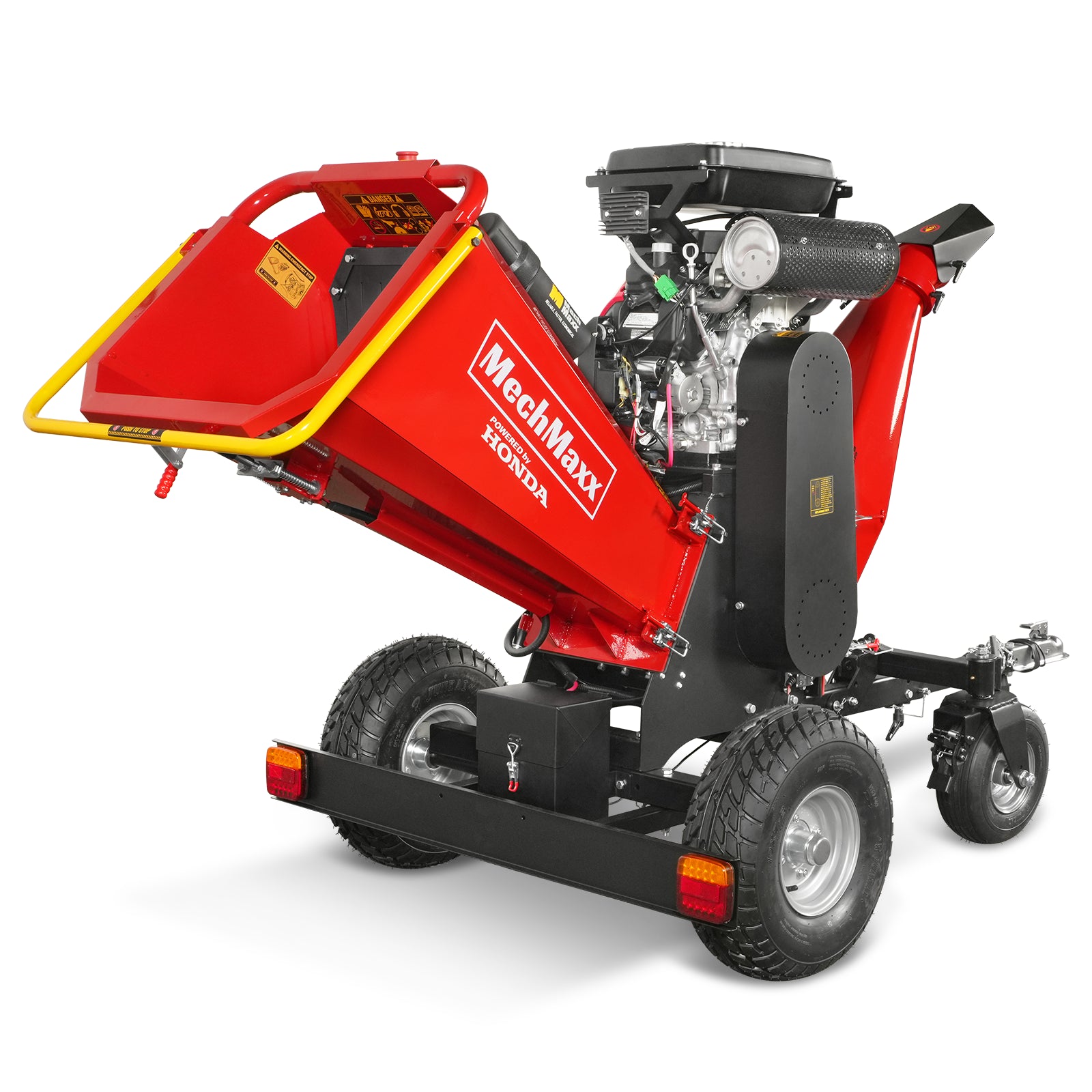

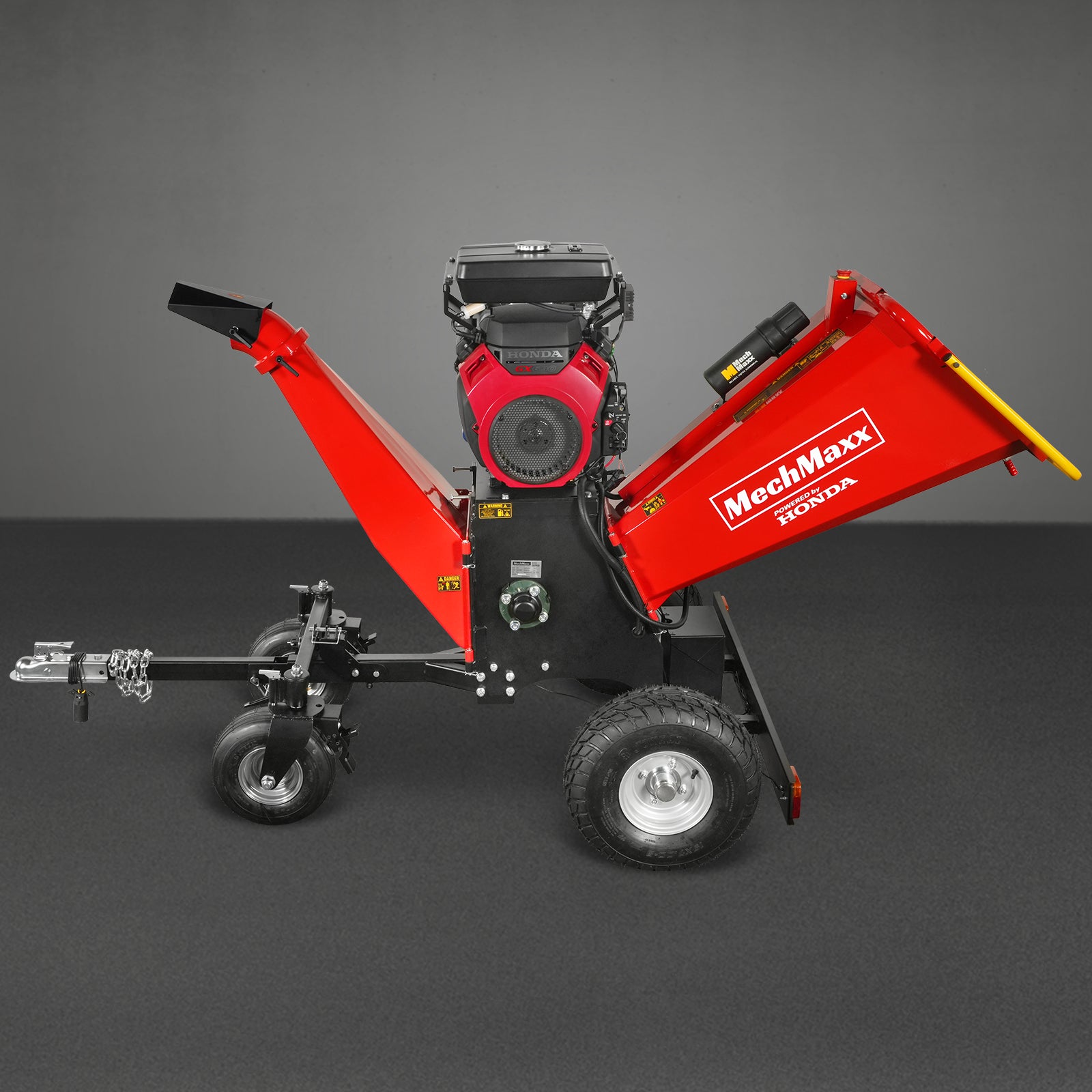

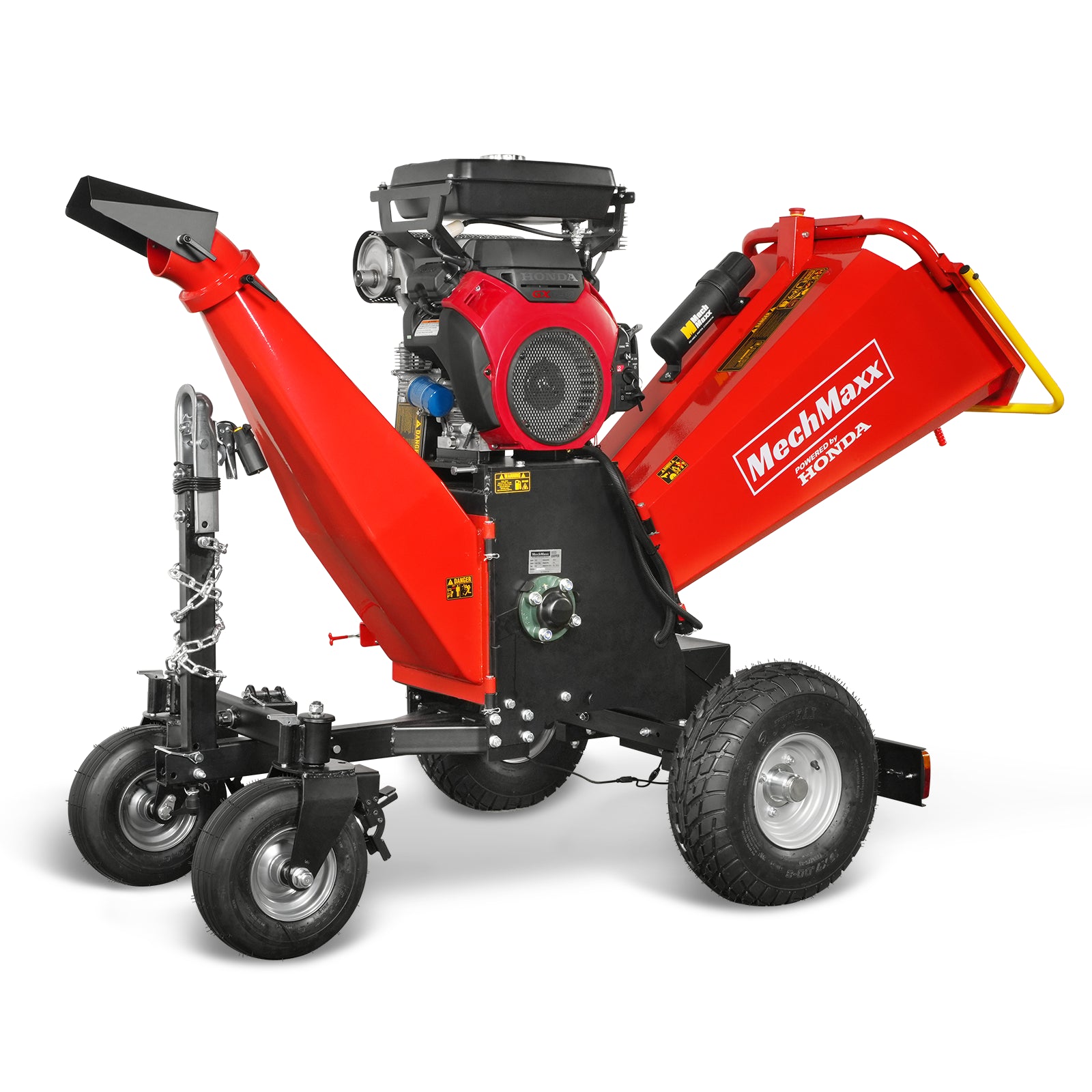

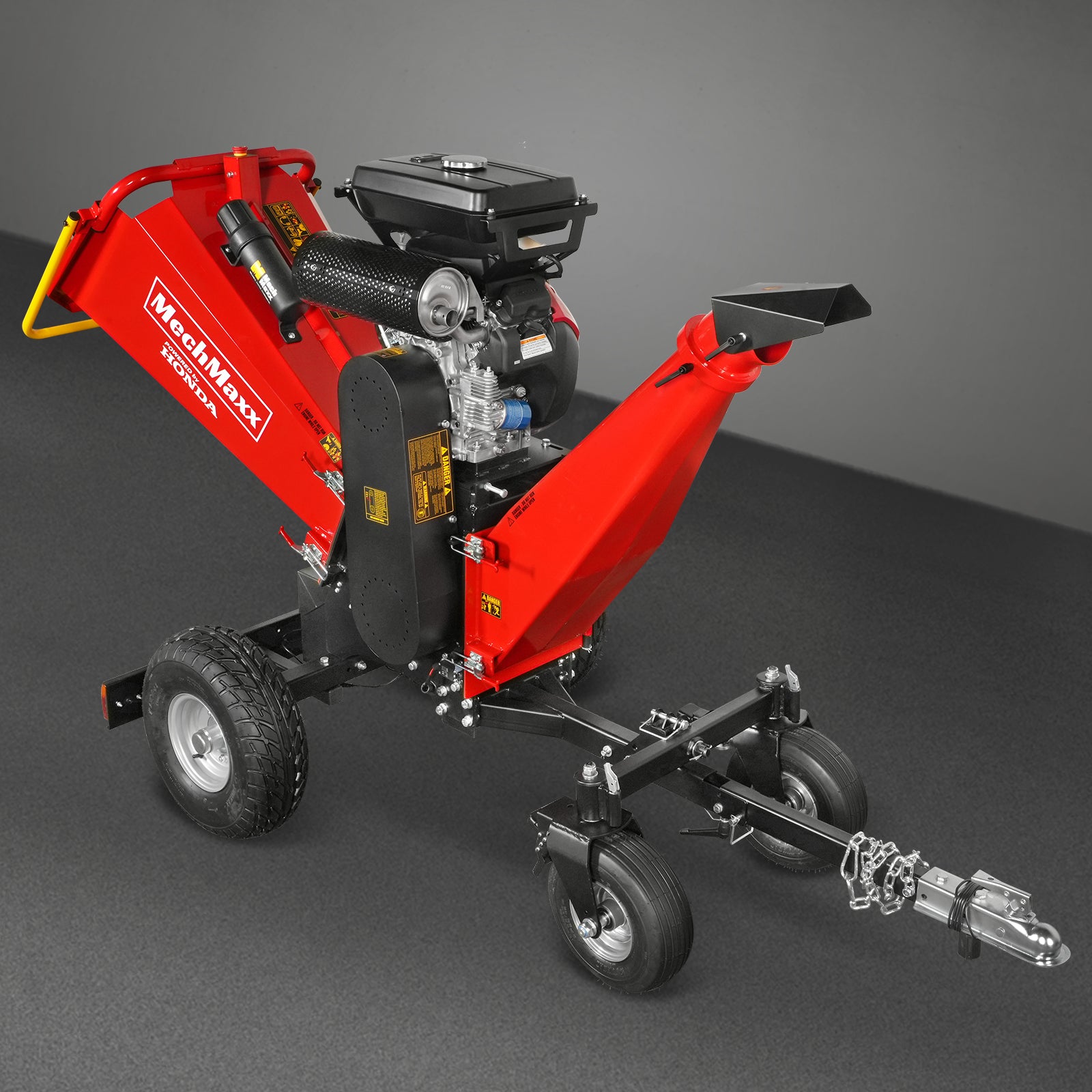

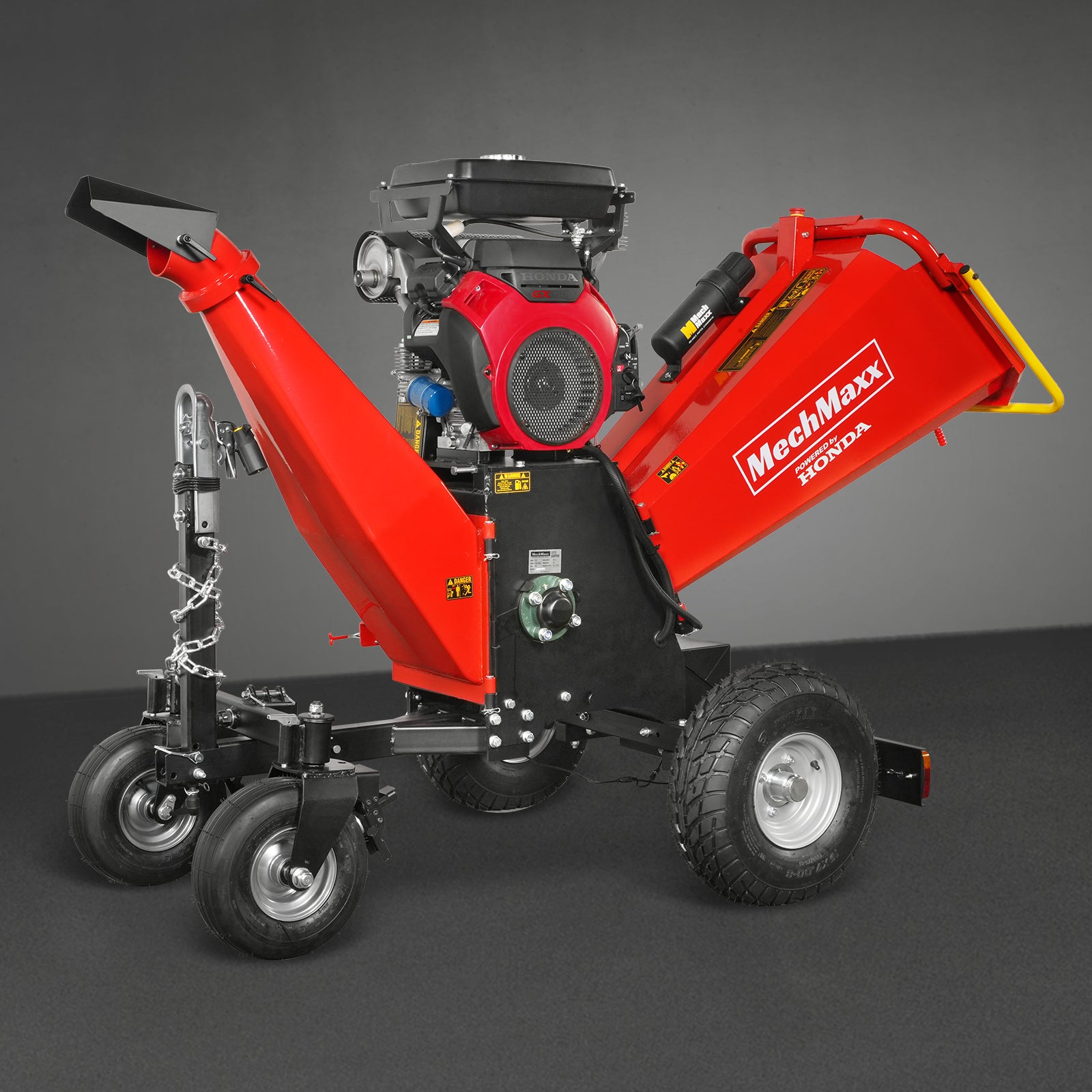

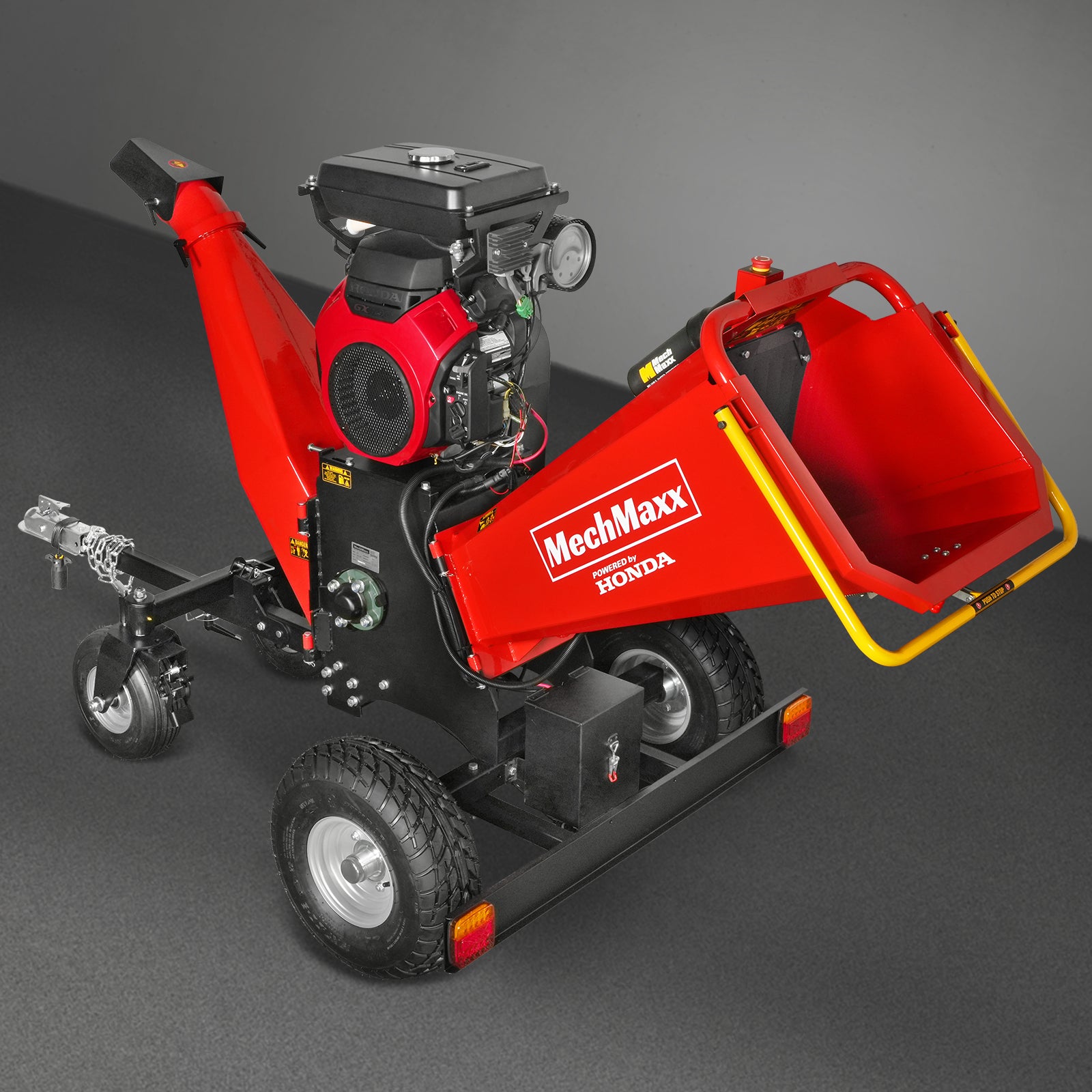

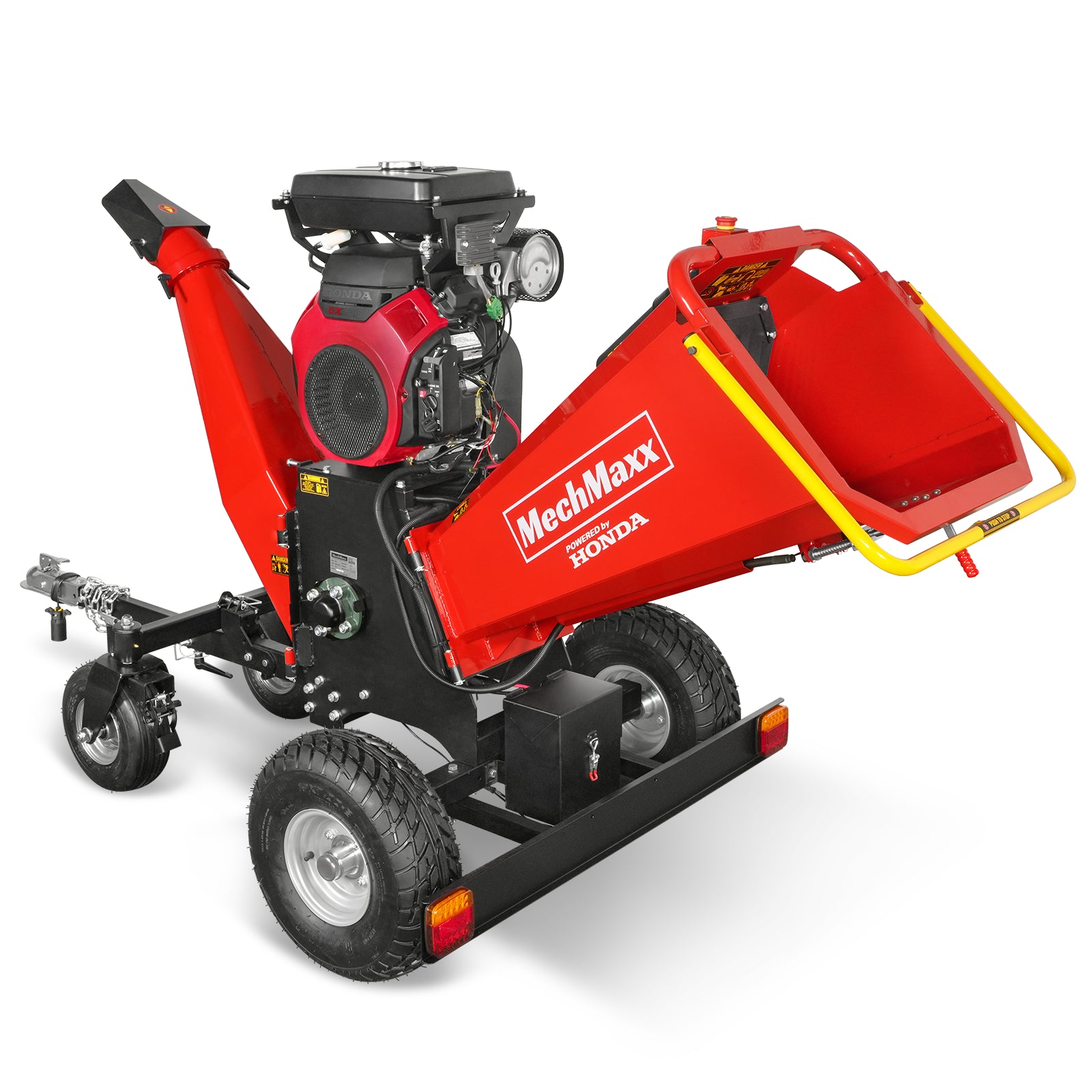

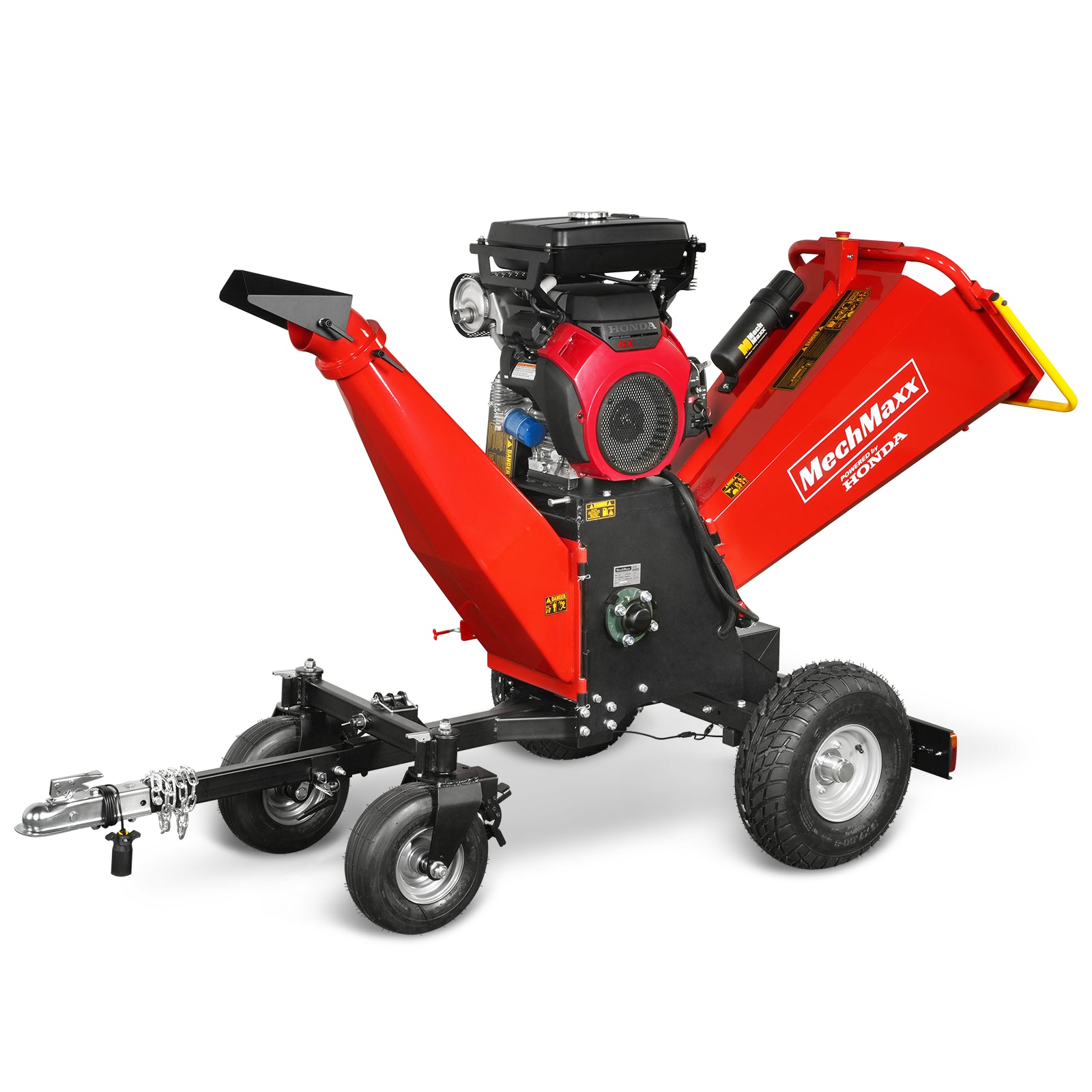

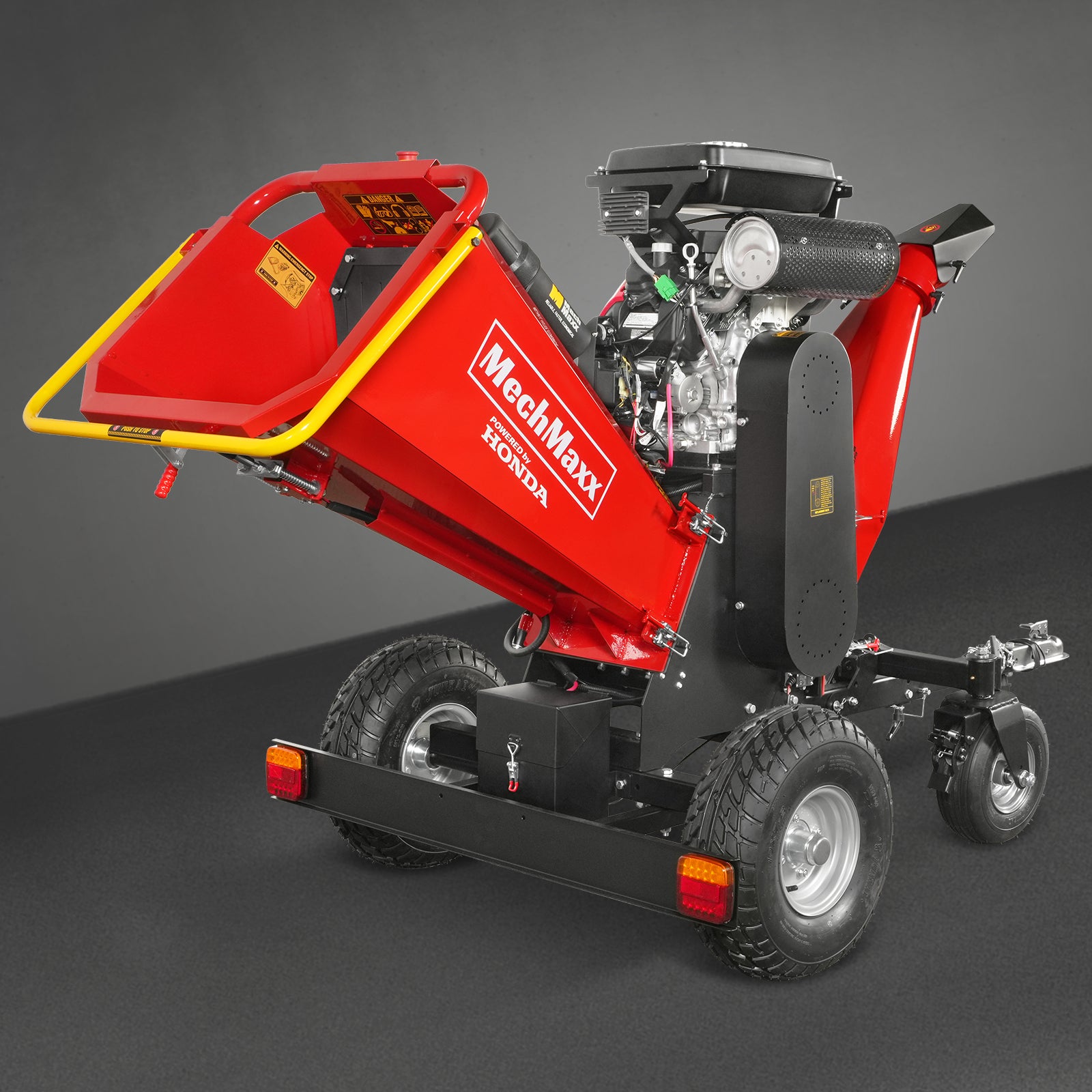

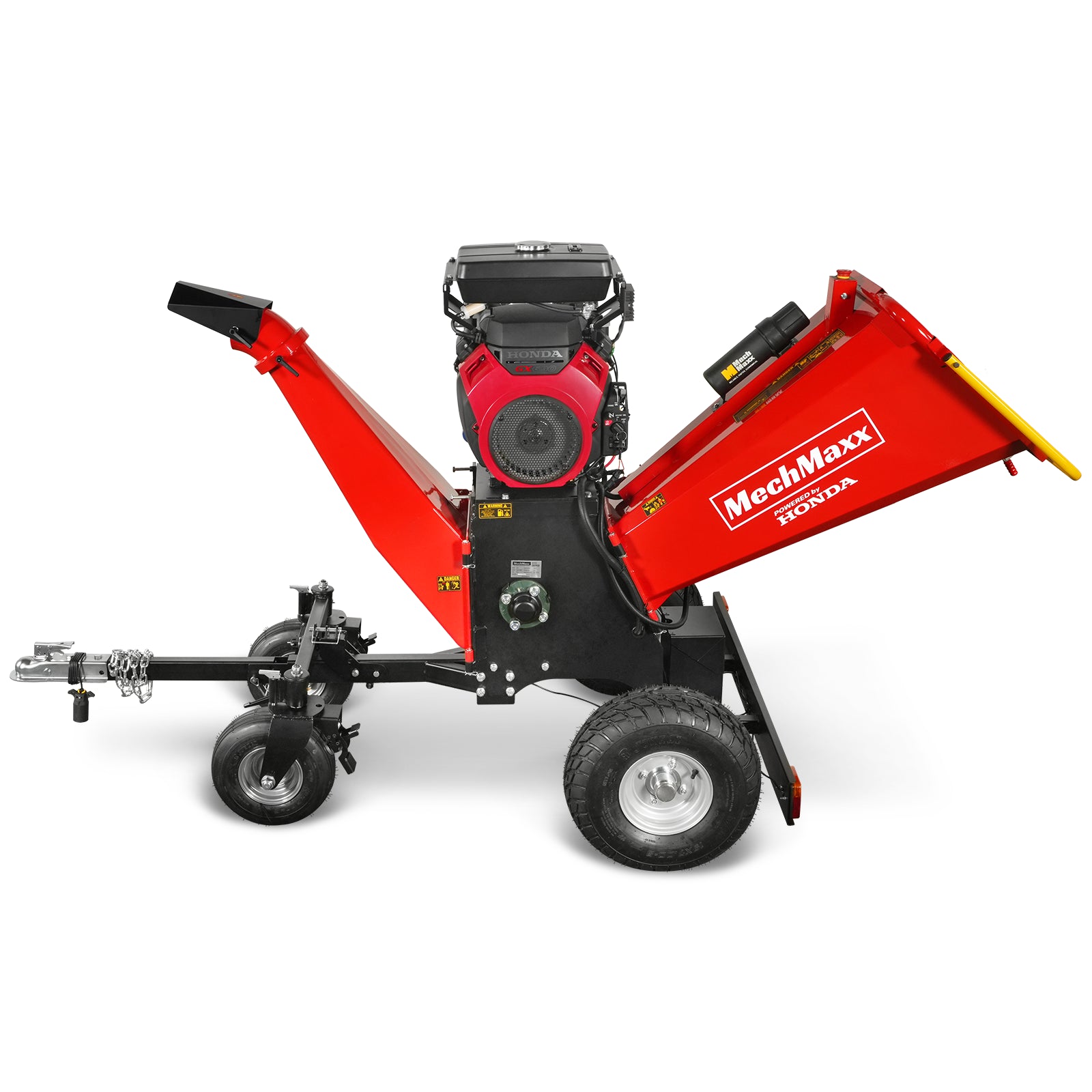

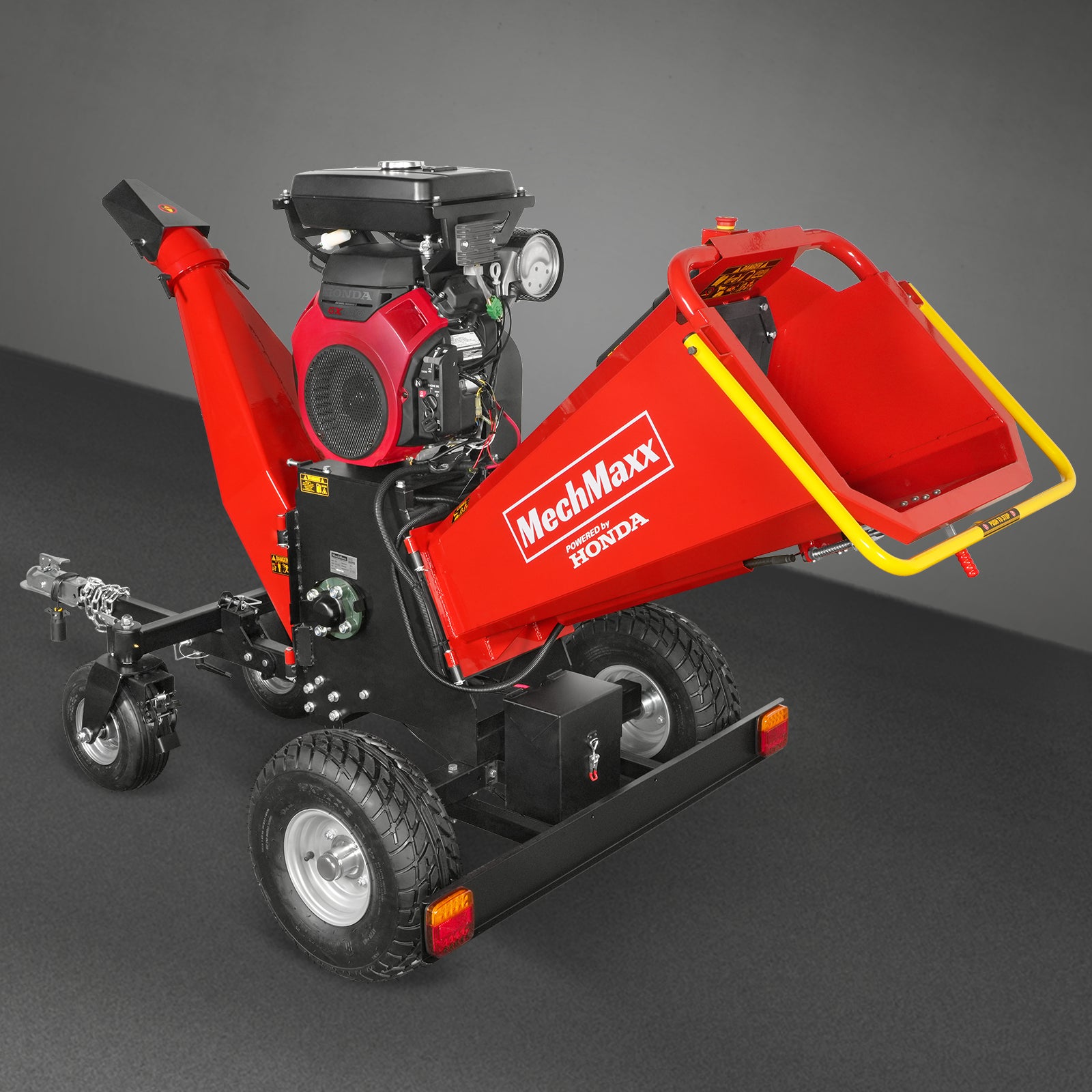

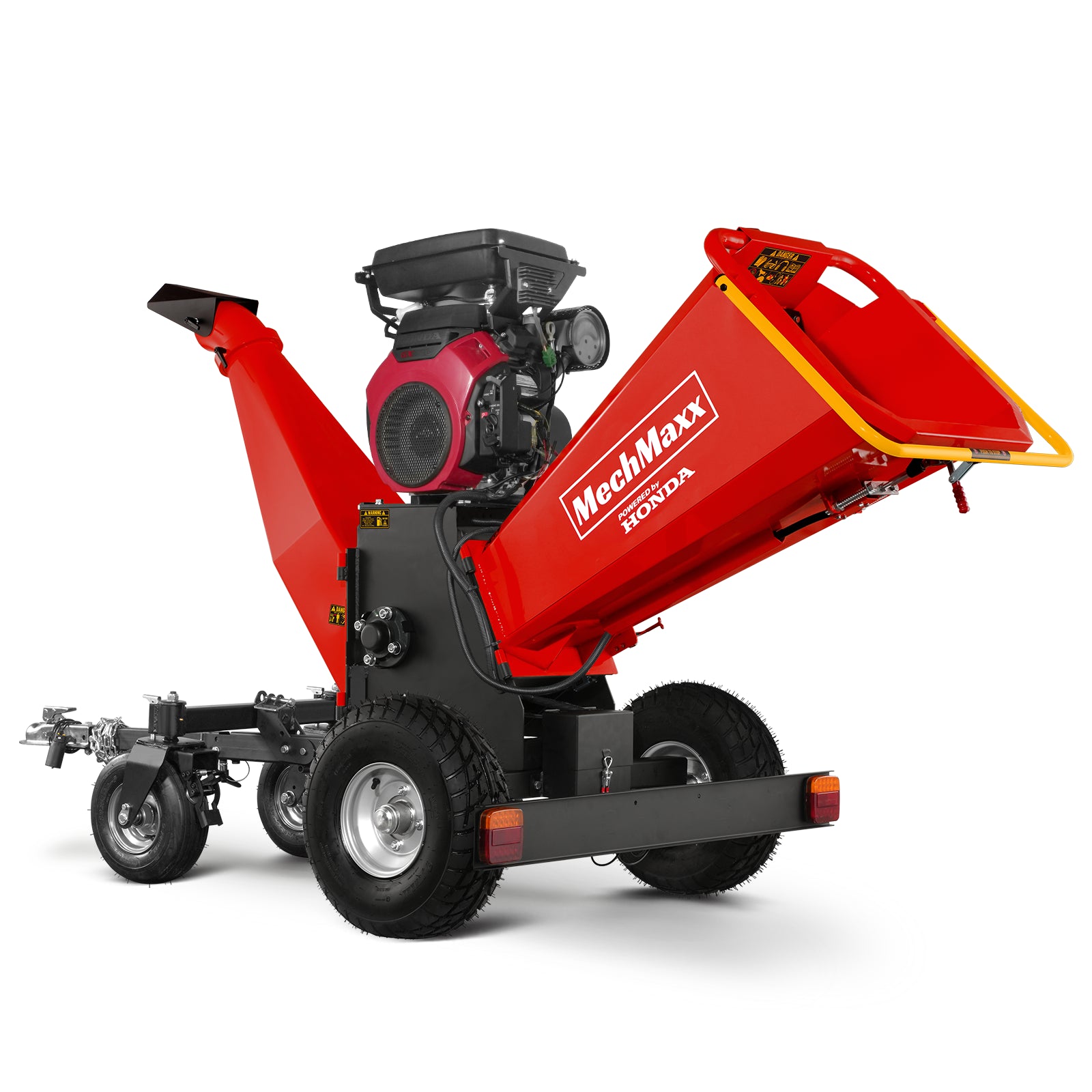

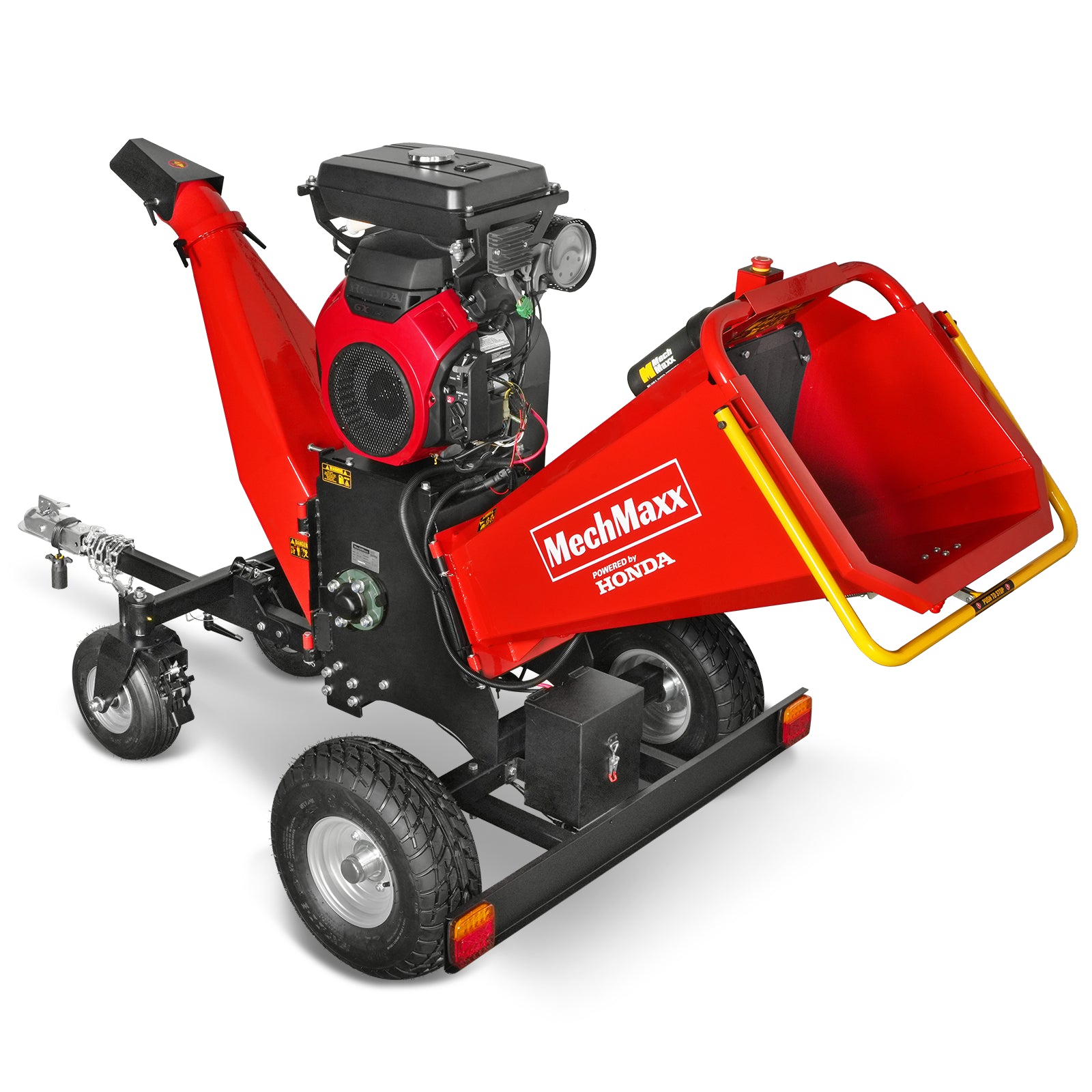

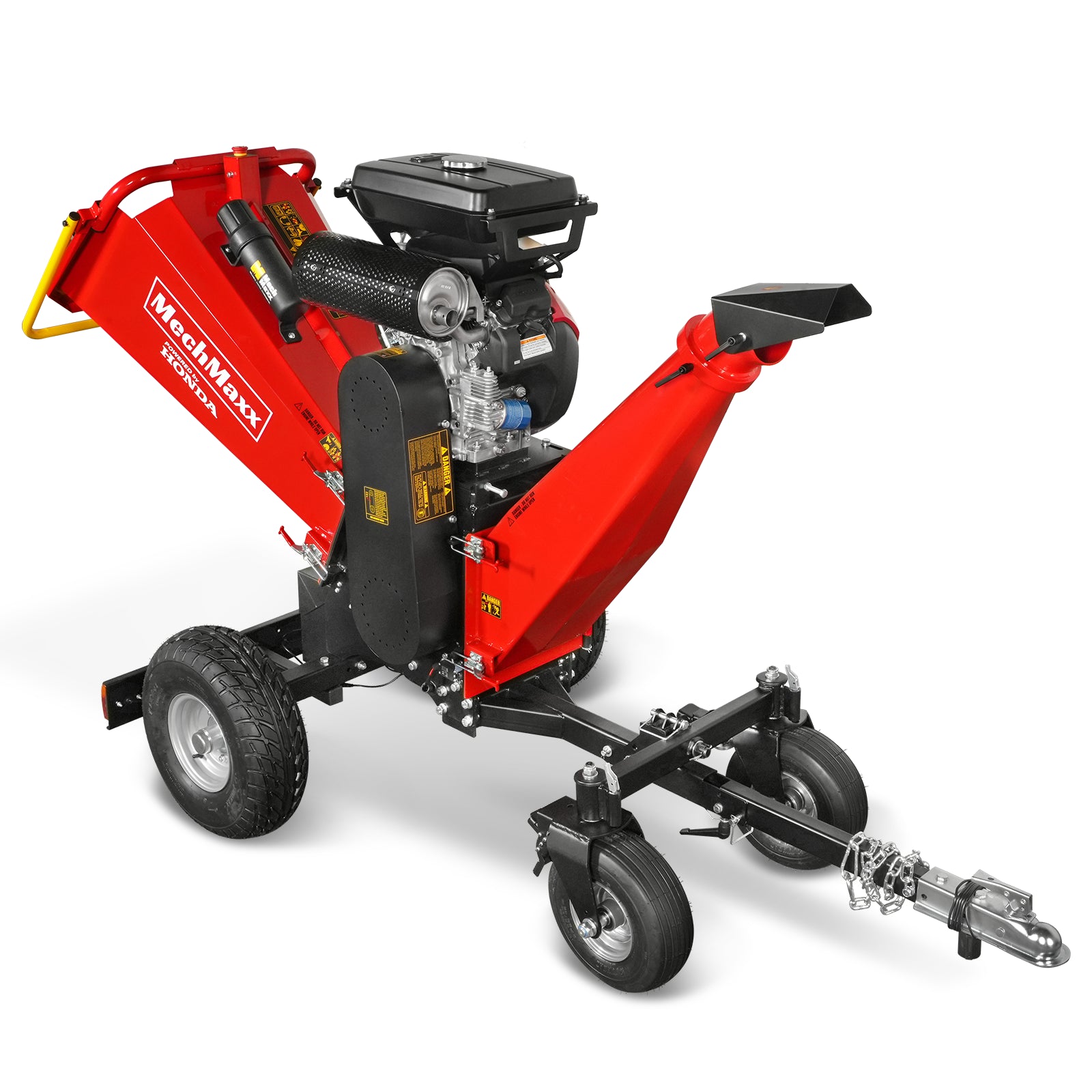

8 inch HONDA E-Start 688cc 22hp Gas Powered 4 - Wheel Drum Wood Chipper with Taillight , B200

Name: 8 inch HONDA E-Start 688cc 22hp Gas Powered 4 - Wheel Drum Wood Chipper with Taillight , B200
Brand: MM
SKU: 110811
Price: 1999 USD
Availability: InStock
Rating: 4.9 (13 reviews)

$199900

$5,499.00

Save $3,500

FREE SHIPPING, Liftgate service available for an additional fee at checkout.

Delivery in 10 - 15 Business Days

Engine : HONDA

HONDA ZONSEN

Availability: In Stock

Payment:

315-750-4008

Sales Contact Number

sales@MM.com

Sales Contact Email

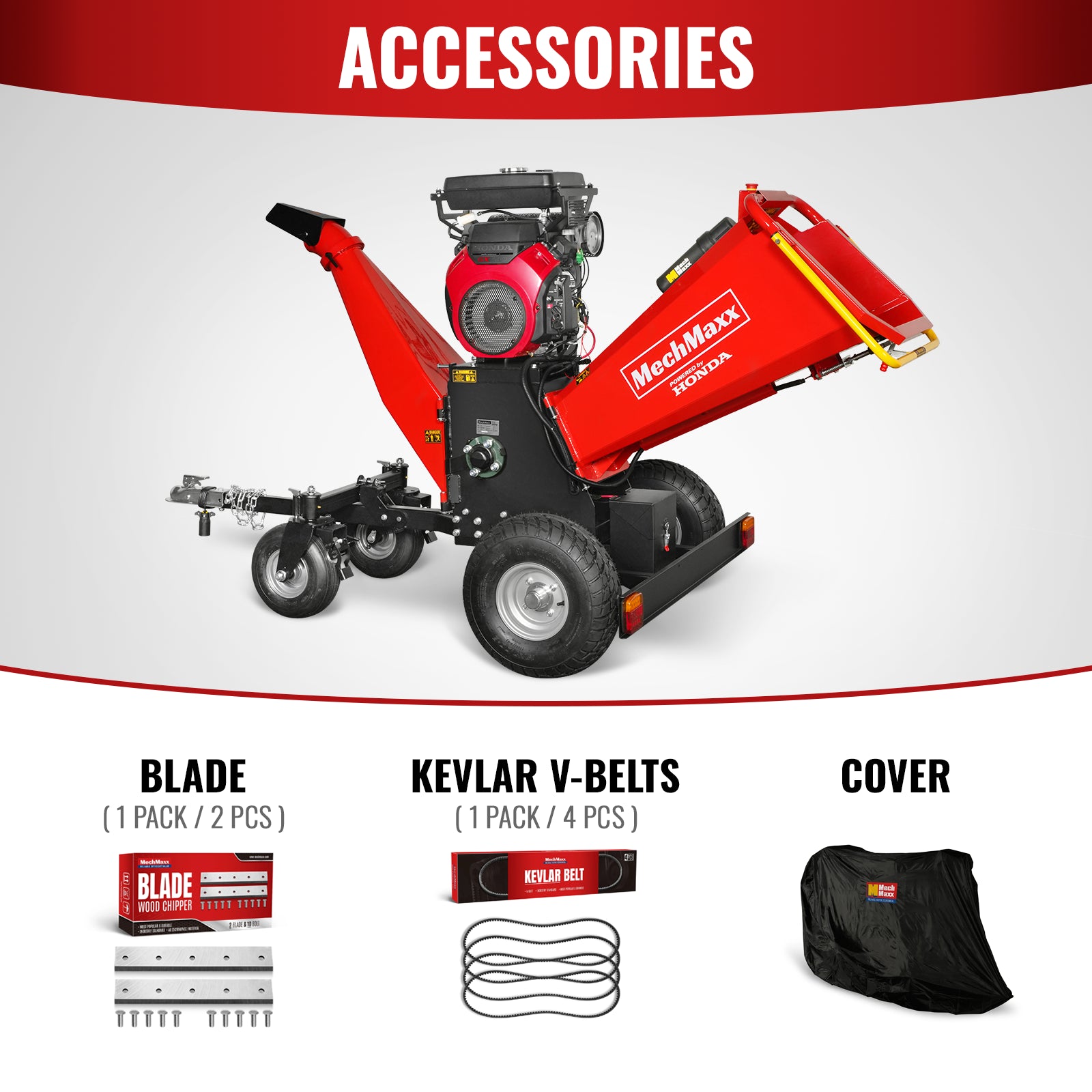

Frequently Bought Together

( 1 Pack / 2 Pcs ) Blade for Wood Chipper B200 (SKU: 110810;110811)

( 1 Pack / 1 Pcs ) Wood Chipper Cover for P4206, B150, B200 ( SKU: 110800; 110801; 110802; 110803; 110804; 110805; 110810 )

8 inch HONDA E-Start 688cc 22hp Gas Powered 4 - Wheel Drum Wood Chipper with Taillight , B200 $199900 $5,499.00

( 1 Pack / 2 Pcs ) Blade for Wood Chipper B200 (SKU: 110810;110811) $9299

( 1 Pack / 1 Pcs ) Wood Chipper Cover for P4206, B150, B200 ( SKU: 110800; 110801; 110802; 110803; 110804; 110805; 110810 ) $6999

Total Price

$

Product Overview

MM 22HP gasoline engine wood chipper, electric start, rated power up to 13.0kw/3600rpm.
This wood chipper has extremely powerful roller with the diameter of 14in., which can shred branches up to 8 inches.
Double-edge cut reversible blades greatly increase the service life.
Both the feeding chute and the discharge chute can be opened quickly and easily for the maintenance and repair.
By adopting whole shaped technology, the discharge chute is both attractive and practical with the ability to rotate 360 degrees.
You can stop the engine quickly in a crisis to improve operator safety with a safety button above the feeding chute and the emergency stop press bar on lower side of the feeding chute.
With front 13x5.00-6; rear 19x7.00-8 Tubeless tires and 48in. super-wide wheelbase, this wood chipper has the ability of driving on steep ground with the high stability.
This is a high-performance wood chipper fit for professionals and leasing companies.
Gasoline/Petrol: Clean, fresh, unleaded gasoline
Oil: 10W-30

Product manual (PDF)

B200 Product manual 1.0.pdf

Engine manual (PDF)

HONDA GX690 Manual.pdf

Assembly guide (PDF)

Wood Chipper Quick Installation Guide.pdf

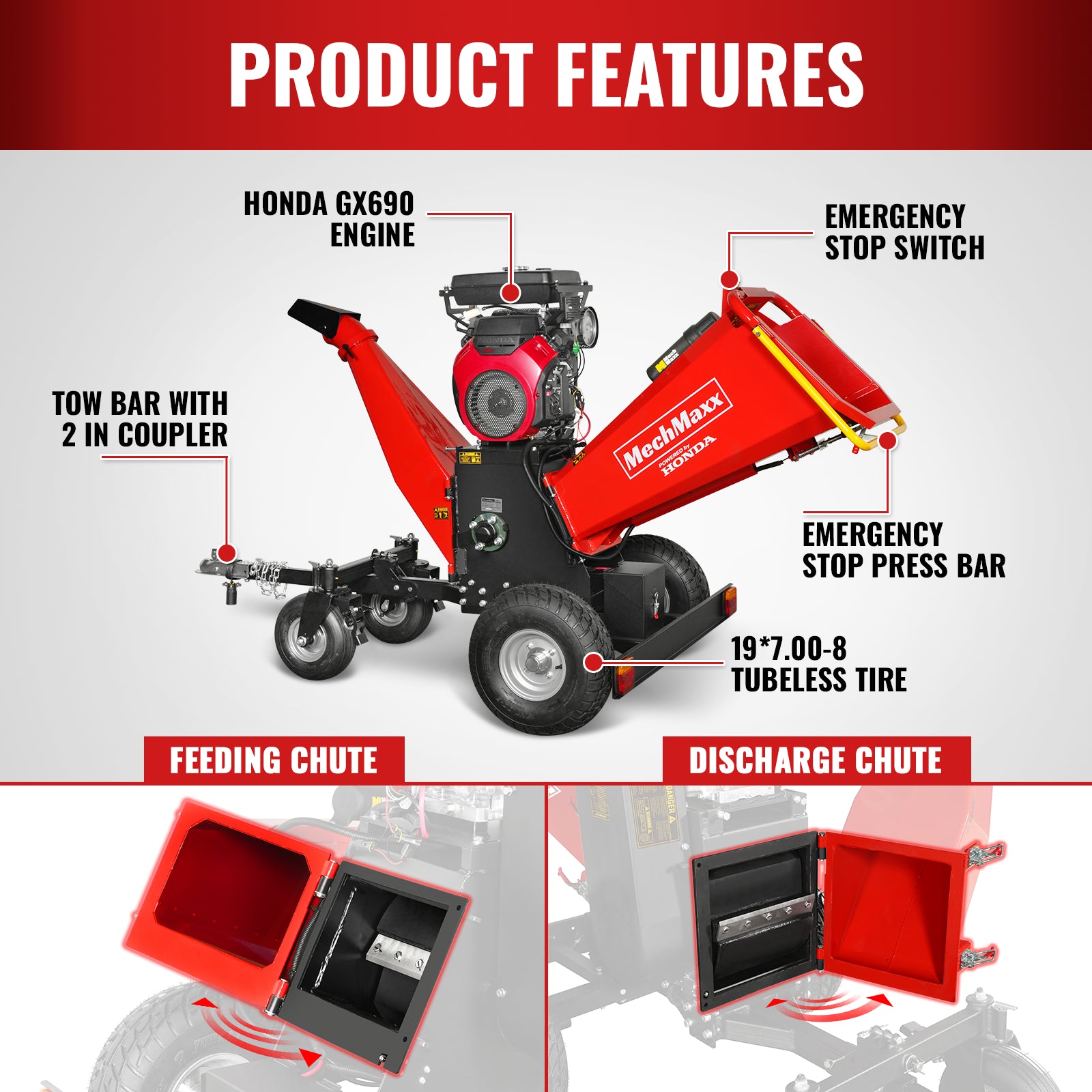

Product Features

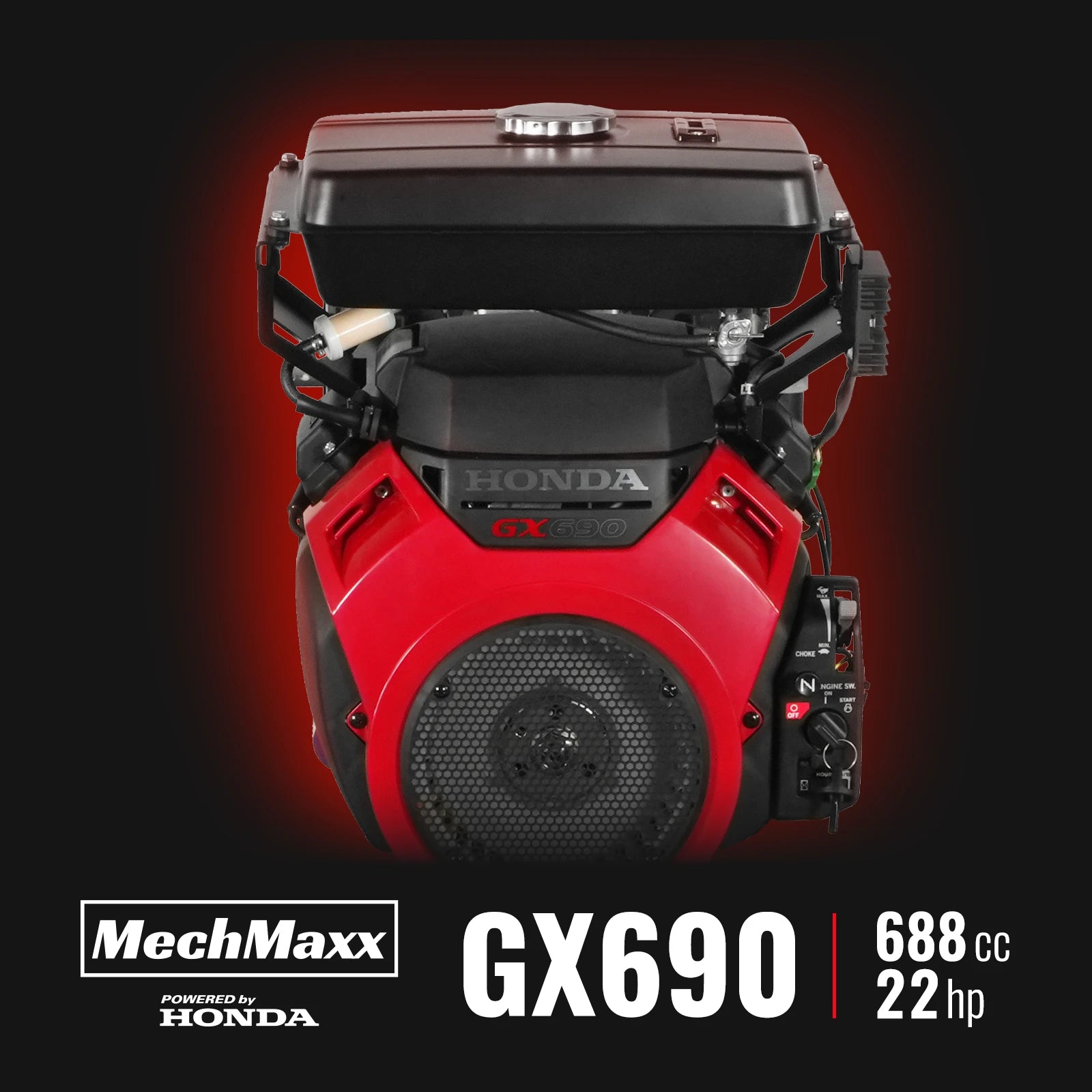

The Honda GX690 Horizontal V-Twin OHV Engine is the ultimate powerhouse for your custom pressure washers rigs and builds. Featuring an electric start and a robust 17-amp charging system, this 688cc engine delivers an impressive 22.1 net horsepower, ensuring your equipment operates at peak performance. Designed with a 1-1/8'' x 3.78''crankshaft and an oil pressure indicator for maximum reliability, Model GX690 is the perfect engine to elevate your pressure washing and soft wash projects. Build with confidence and power up your business with Honda's unmatched quality and durability.

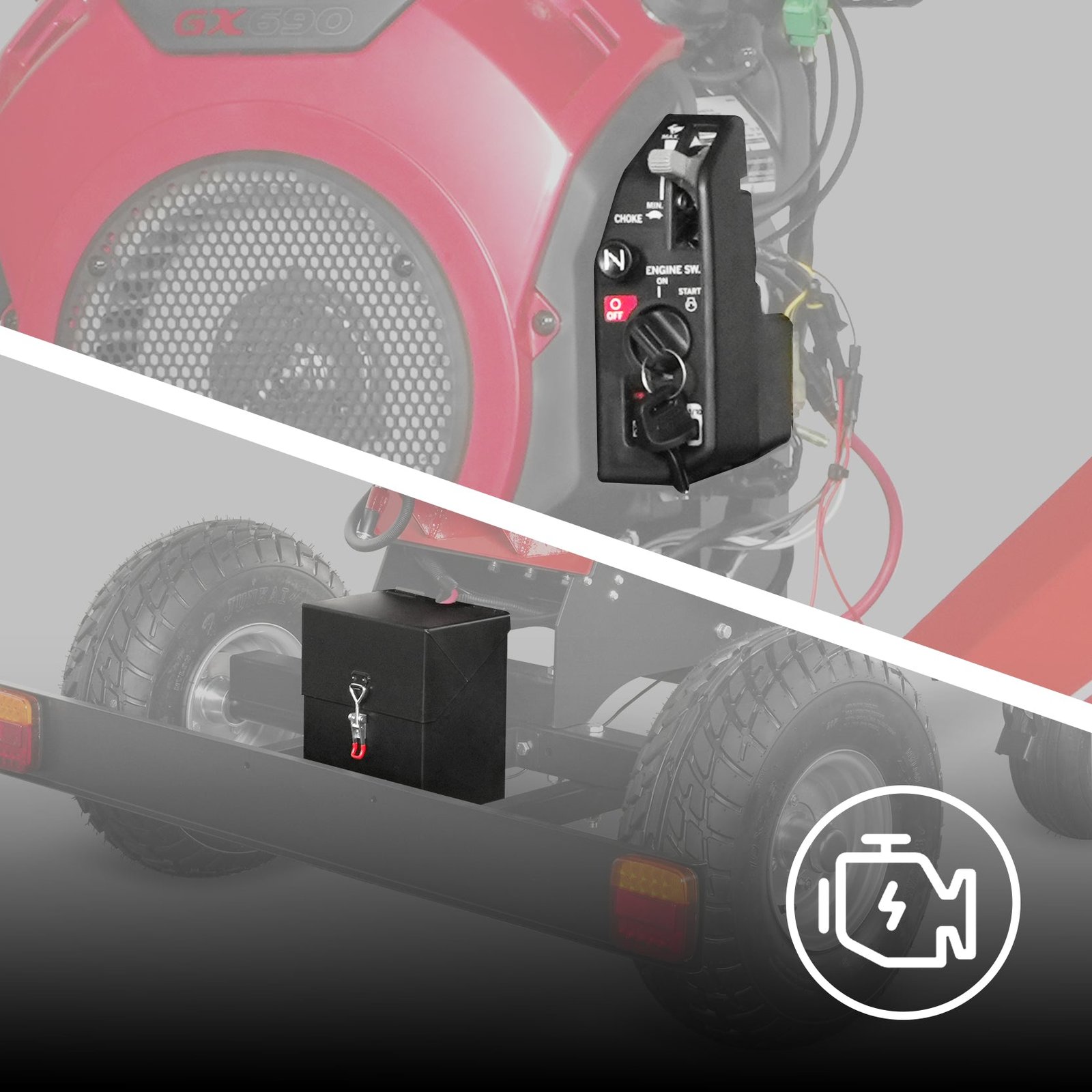

Electric Start and Battery

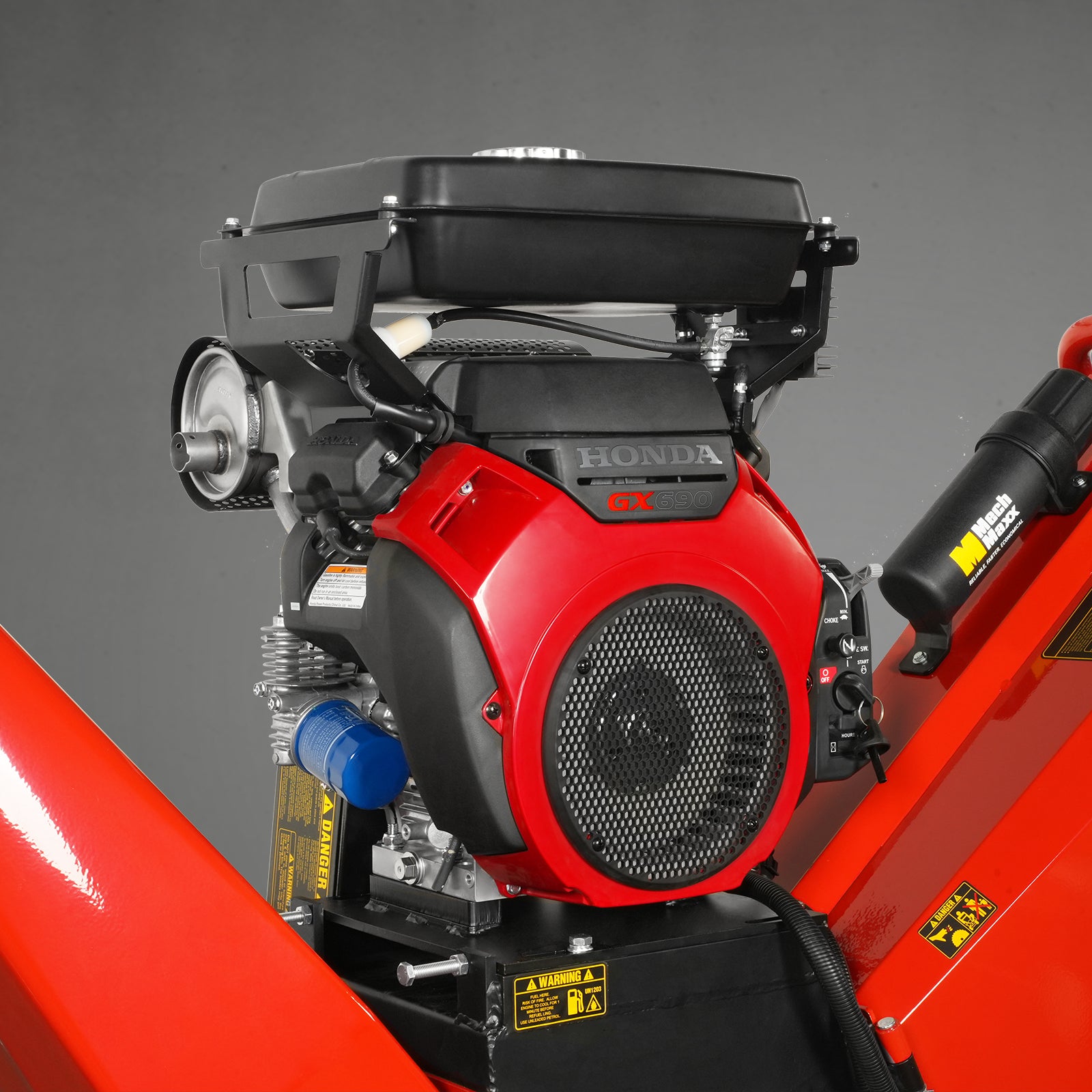

The B200 Wood Chipper is powered by a 22hp 688cc electric start gasoline engine, and equipped with a 36Ah 12V Lead-acid battery.

Feeding Chute

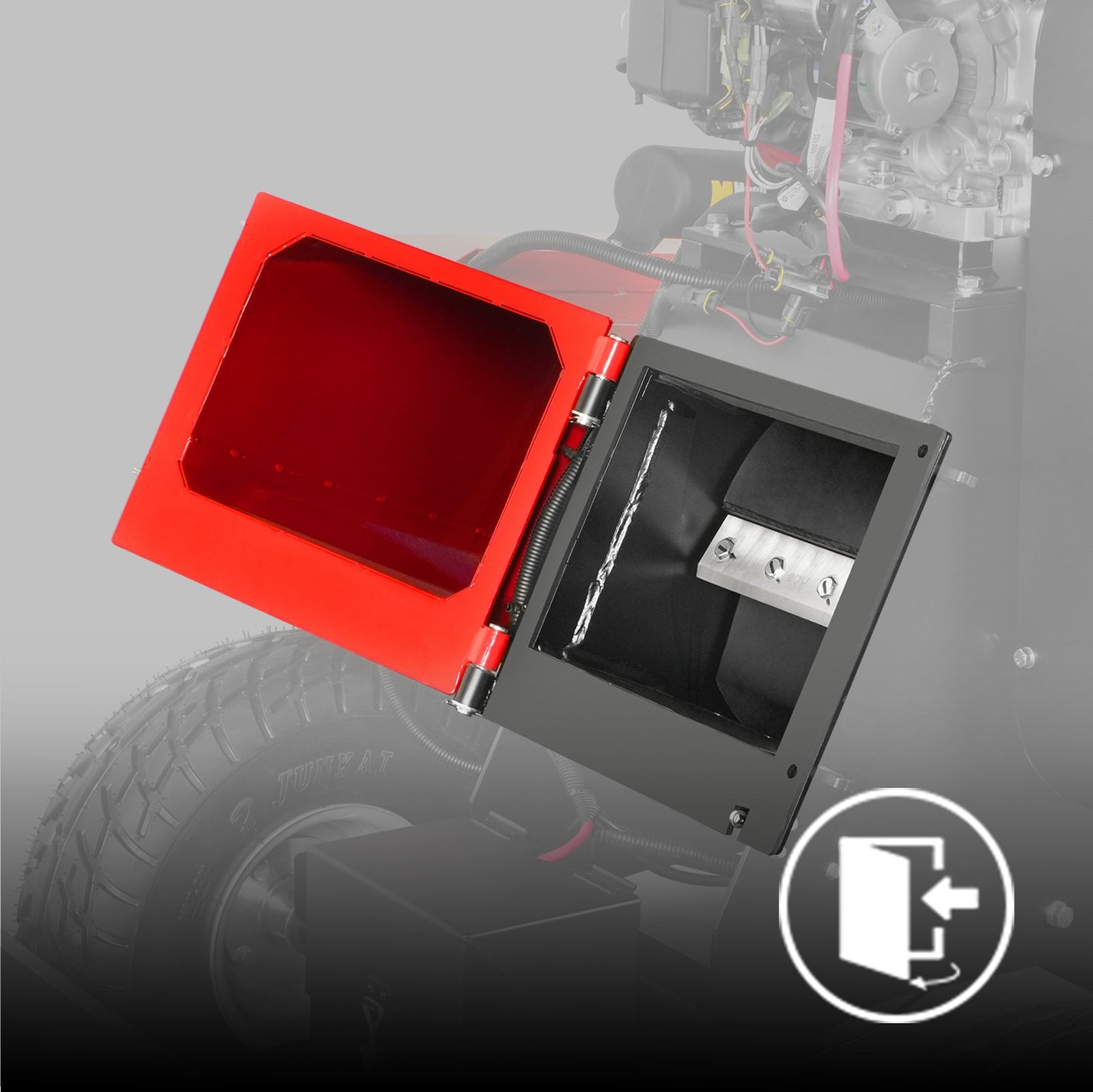

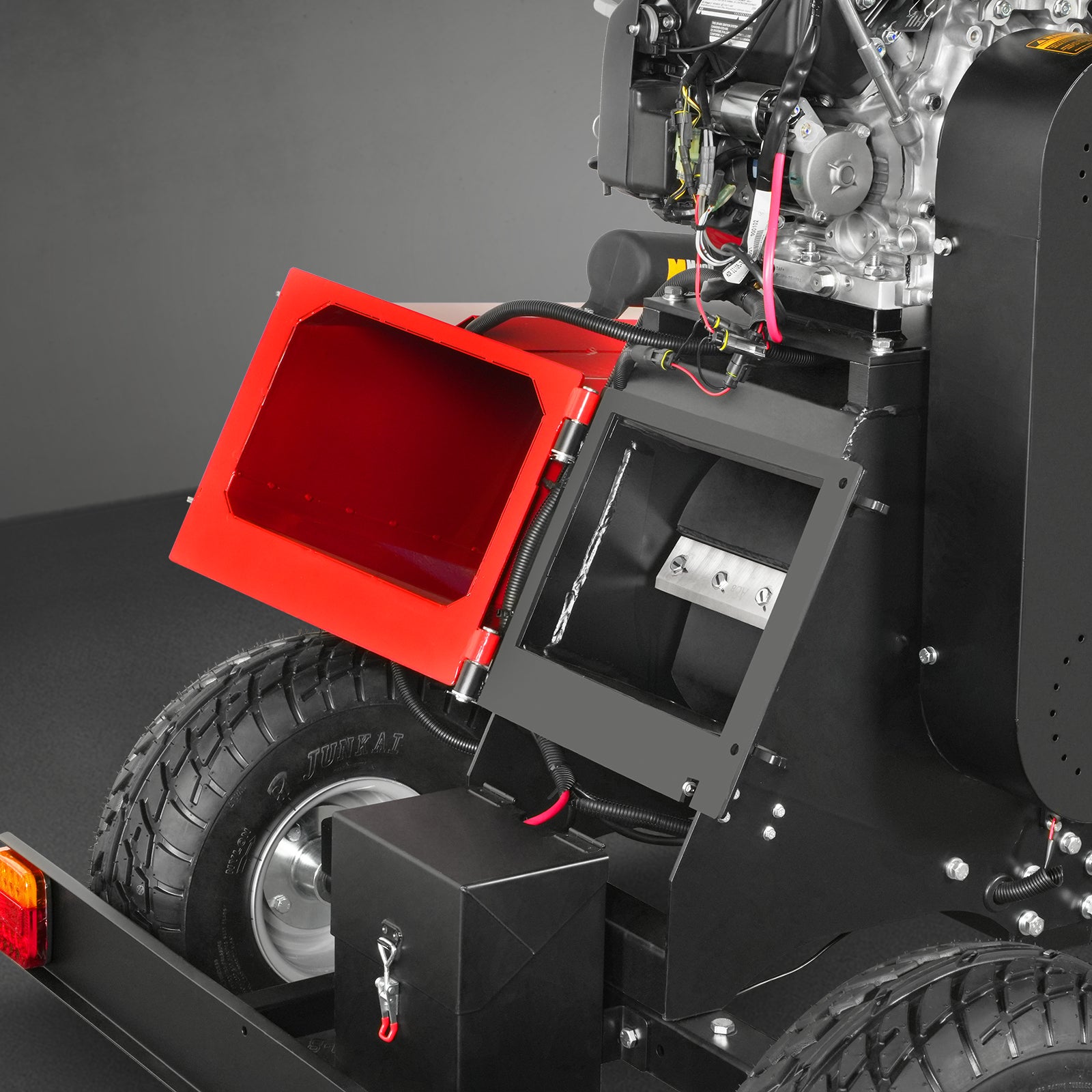

There are 2 buckles that can be quickly opened for easy cleaning of residual wood chips and blade replacement on one side of the feeding chute. When the feeding chute is open, the gasoline engine will trigger a limit switch and shut down to ensure safety during maintenance.

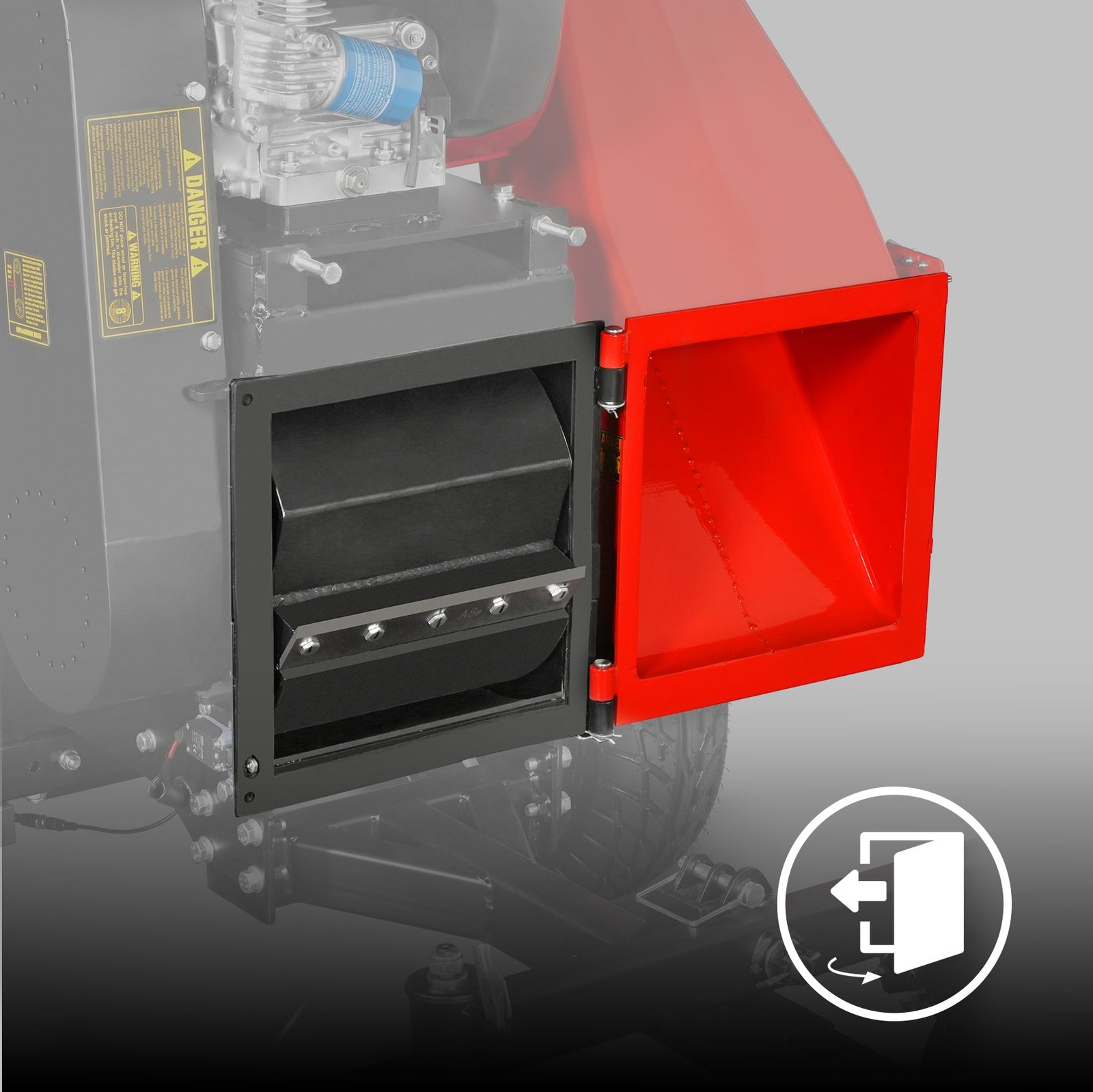

Discharge Chute

Similarly, on one side of the discharge chute, there are 2 buckles that can be quickly opened for easy cleaning of residual wood chips and blade replacement. When the discharge chute is open, the gasoline engine will trigger a limit switch and shut down to ensure safety during maintenance.

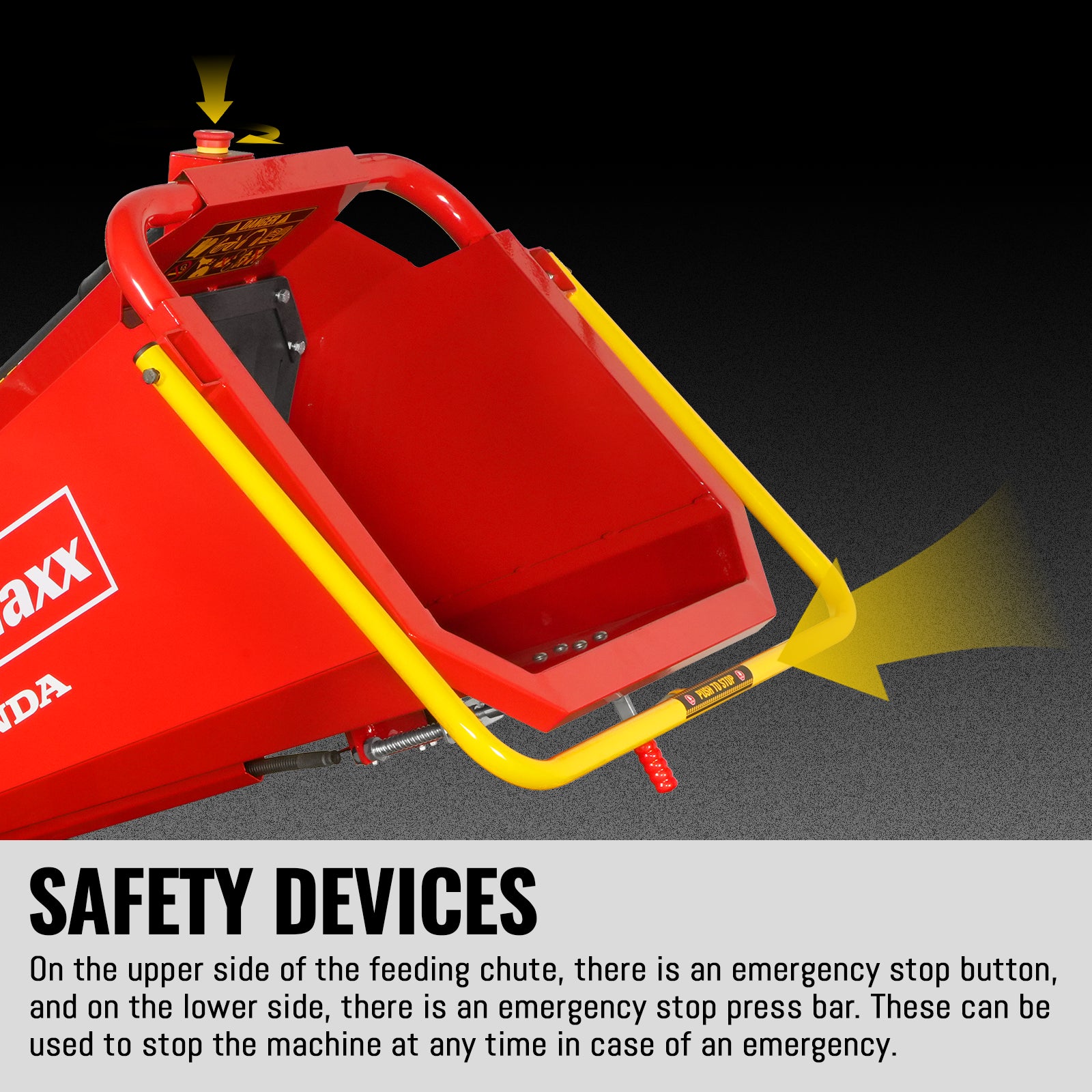

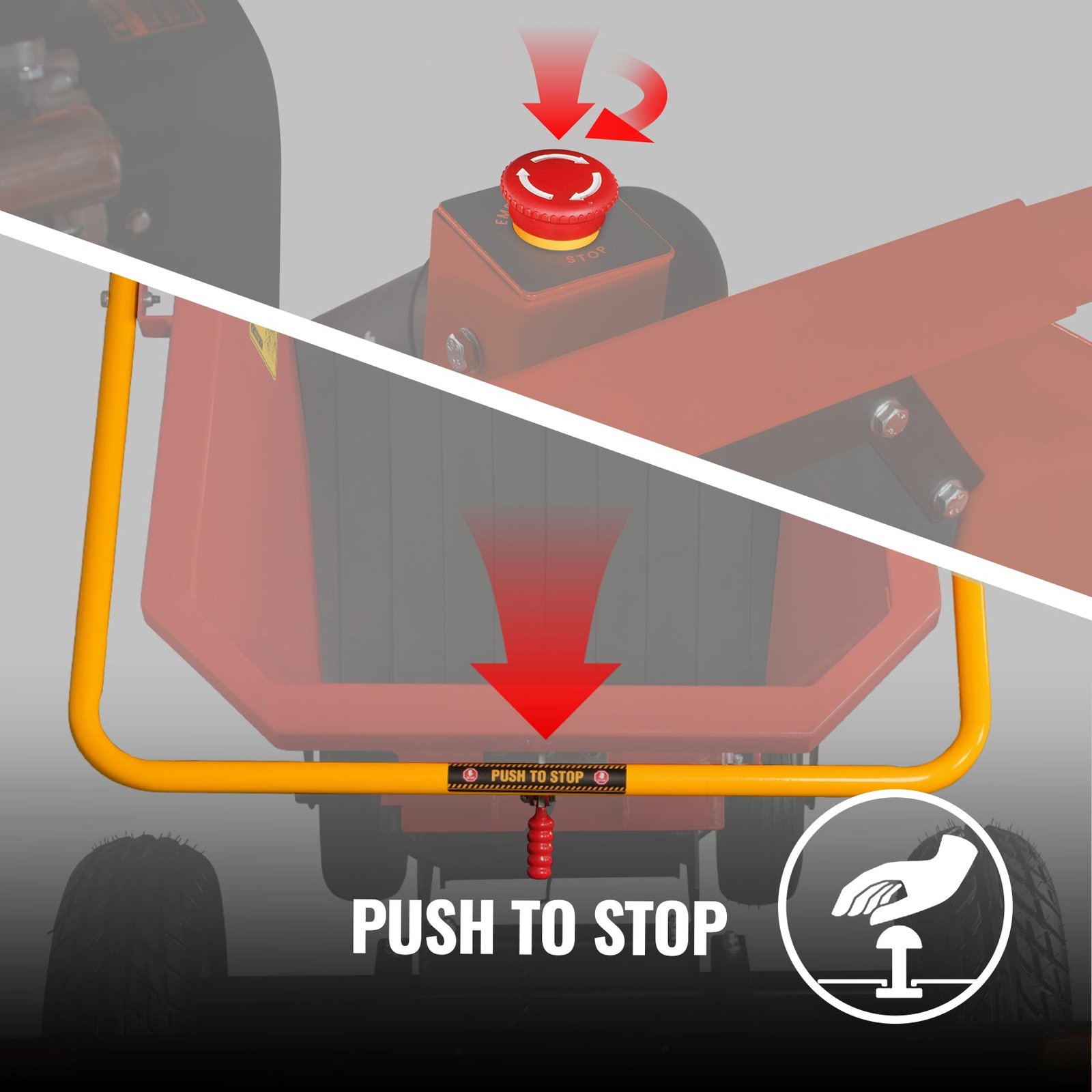

Safety Devices

On the upper side of the feeding chute, there is an emergency stop button, and on the lower side, there is an emergency stop press bar. These can be used to stop the machine at any time in case of an emergency.

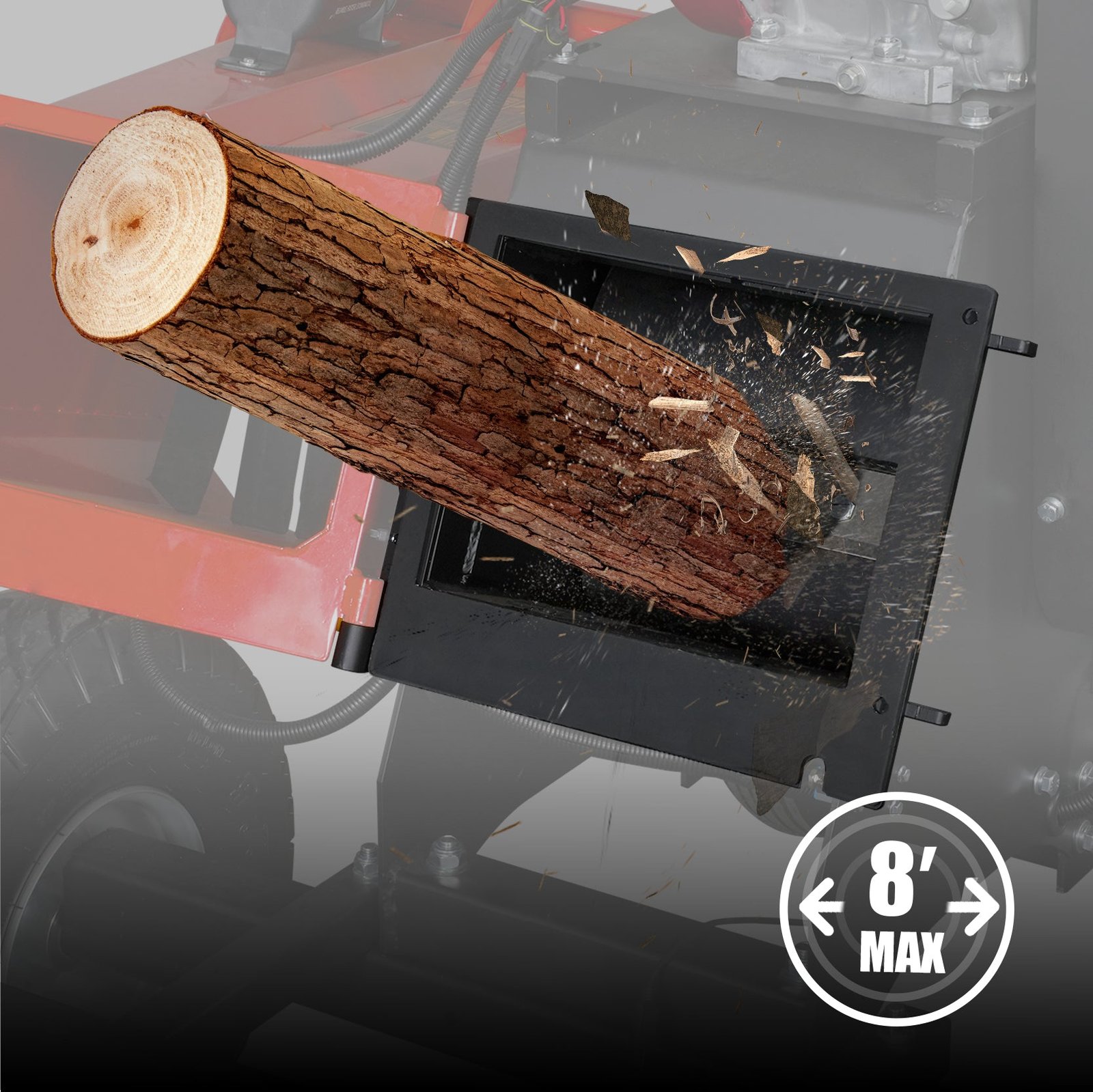

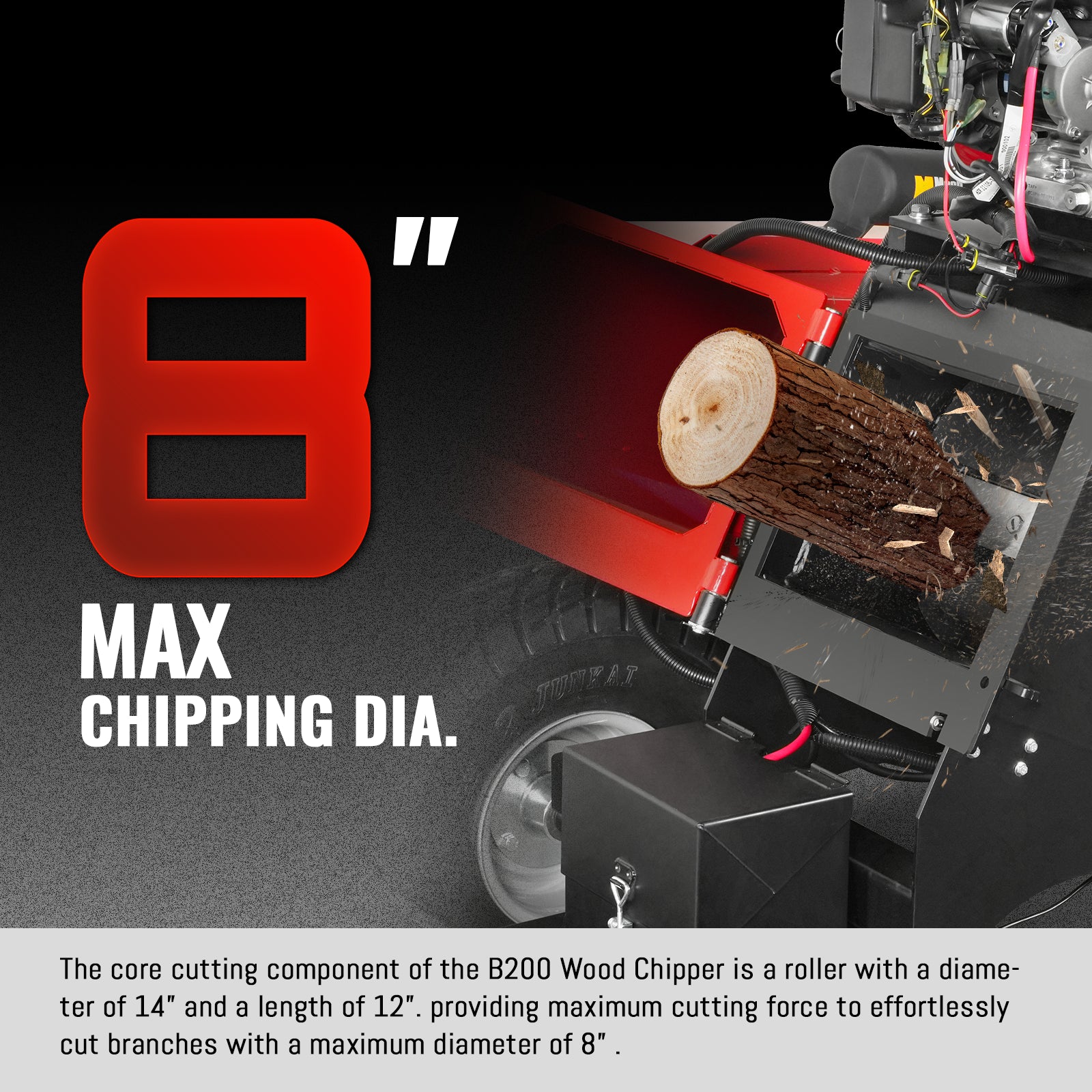

Maximum Wood Chip Diameter 8’’

The core cutting component of the B200 Wood Chipper is a roller with a diameter of 14” and a length of 12”. Such a large roller generates impressive inertia, providing maximum cutting force to effortlessly cut branches with a maximum diameter of 8” .

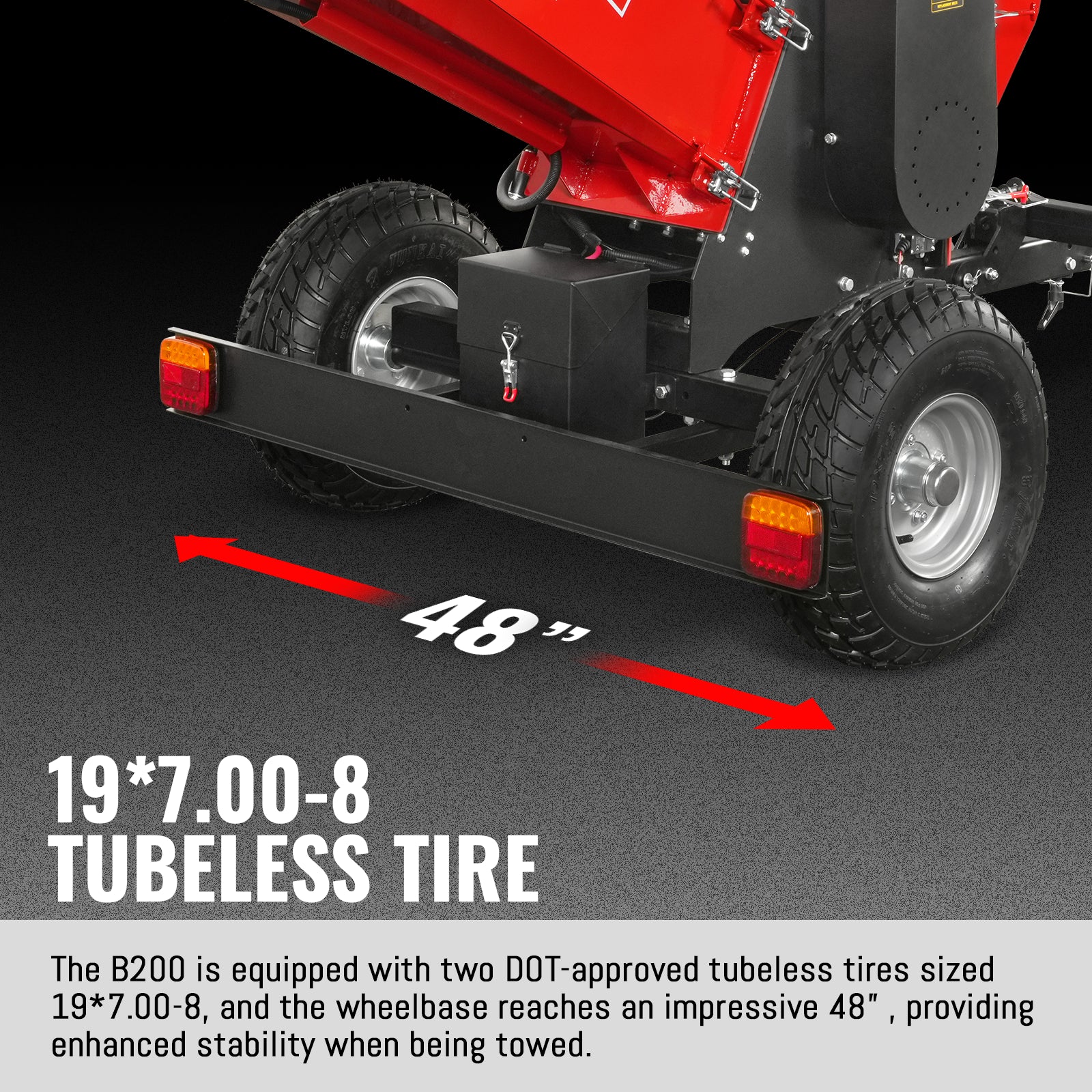

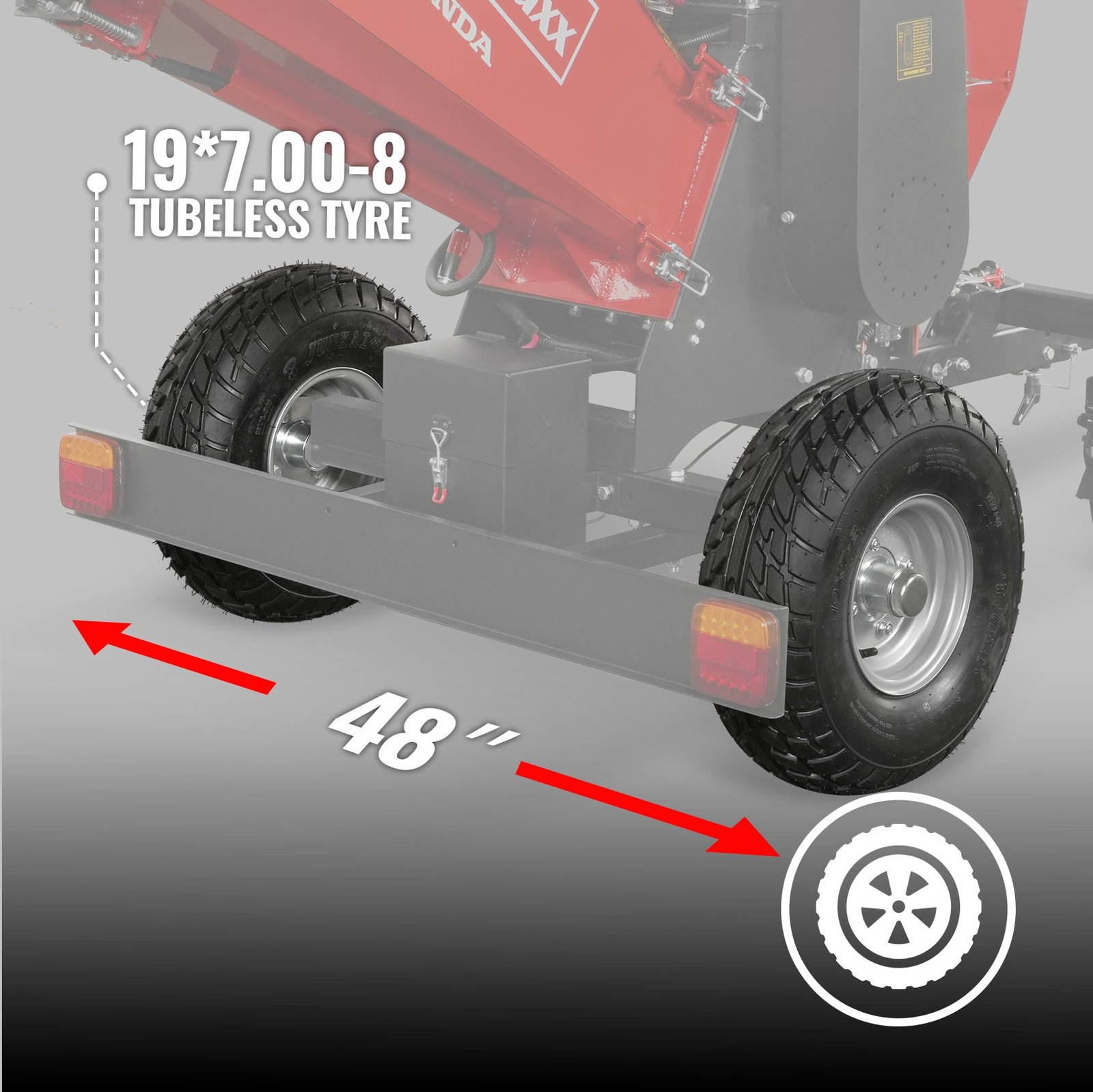

19*7.00-8 tubeless tire

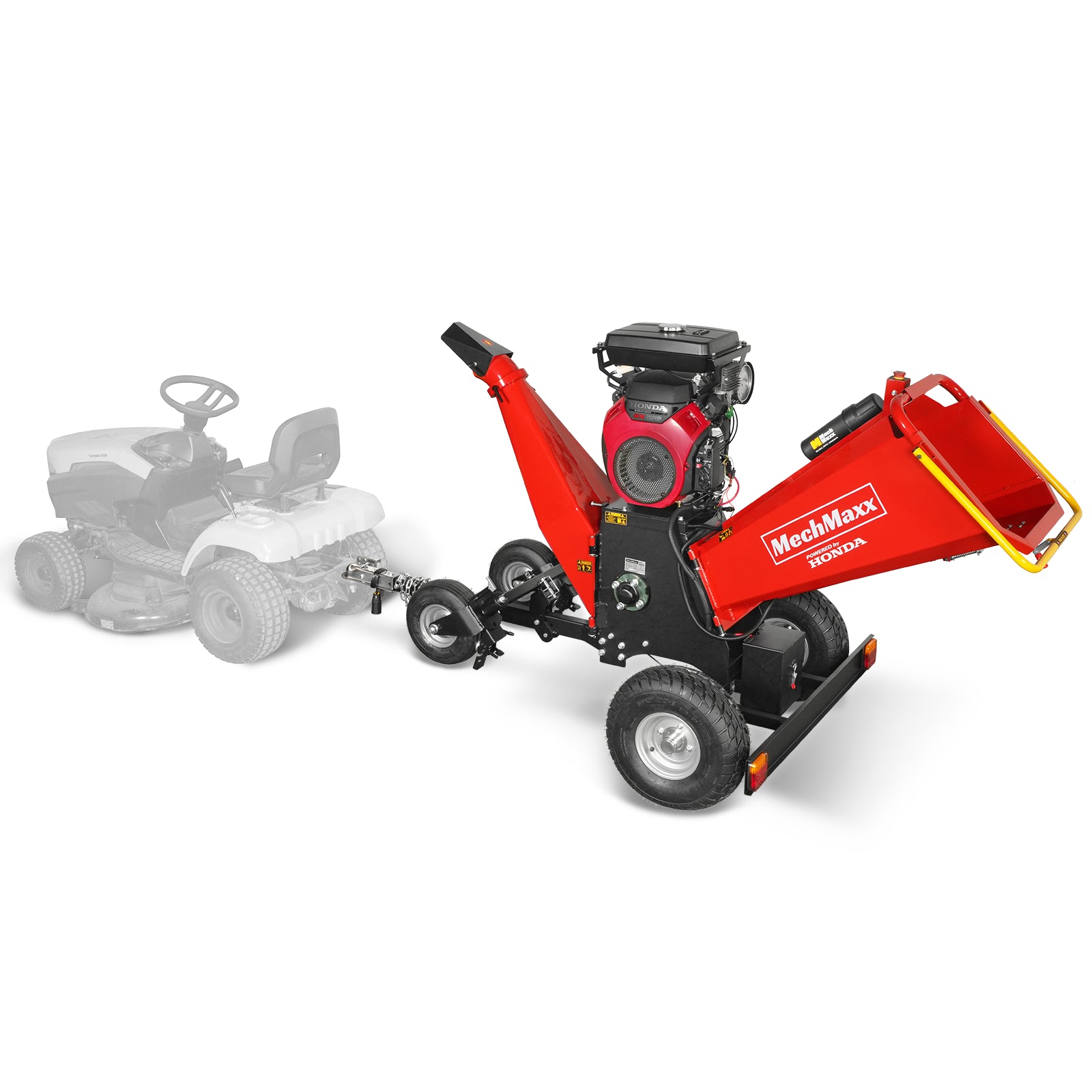

The B200 is equipped with two DOT-approved tubeless tires sized 19*7.00-8, and the wheelbase reaches an impressive 48” , providing enhanced stability when being towed.

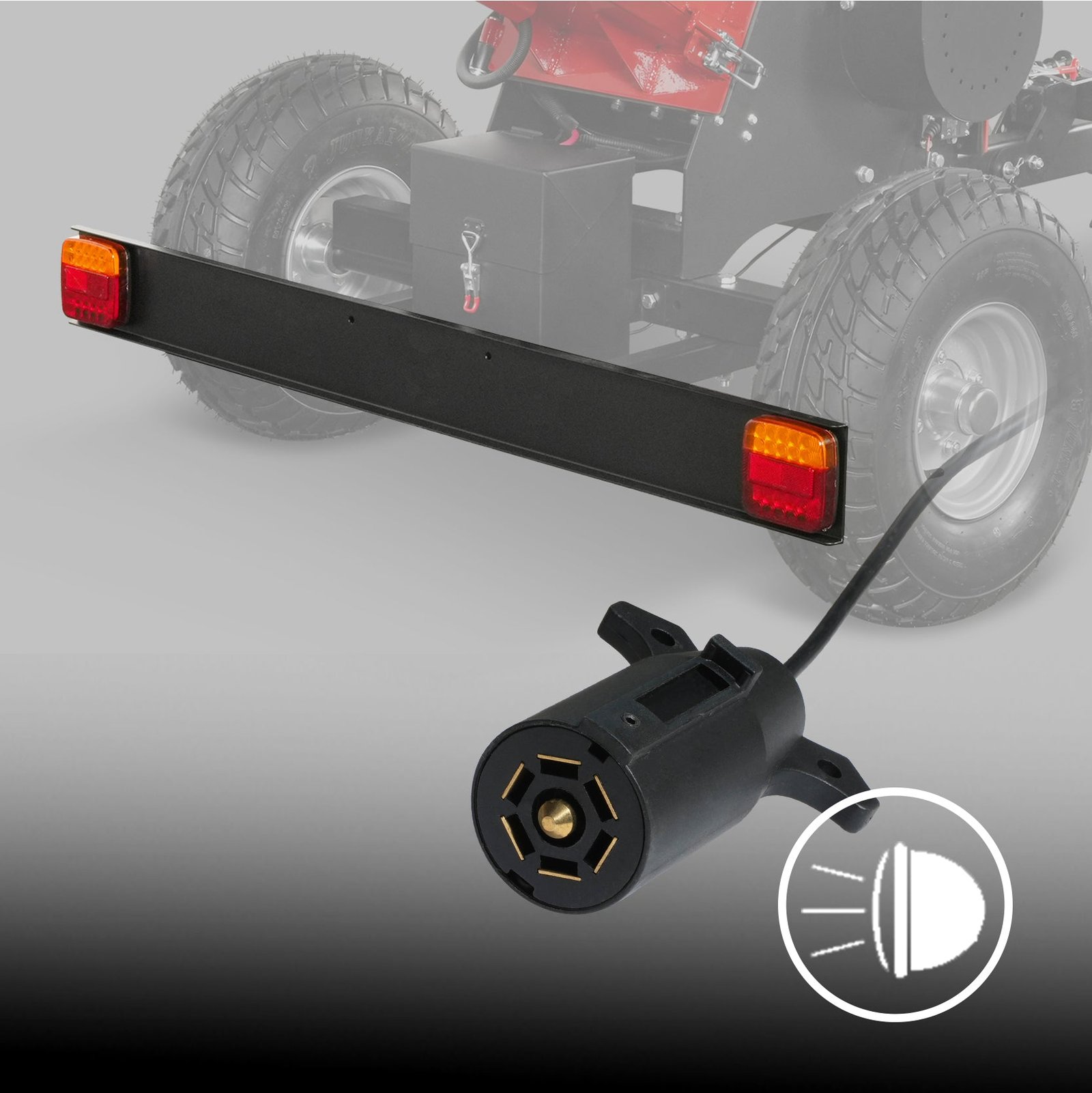

Tail Light and Plug

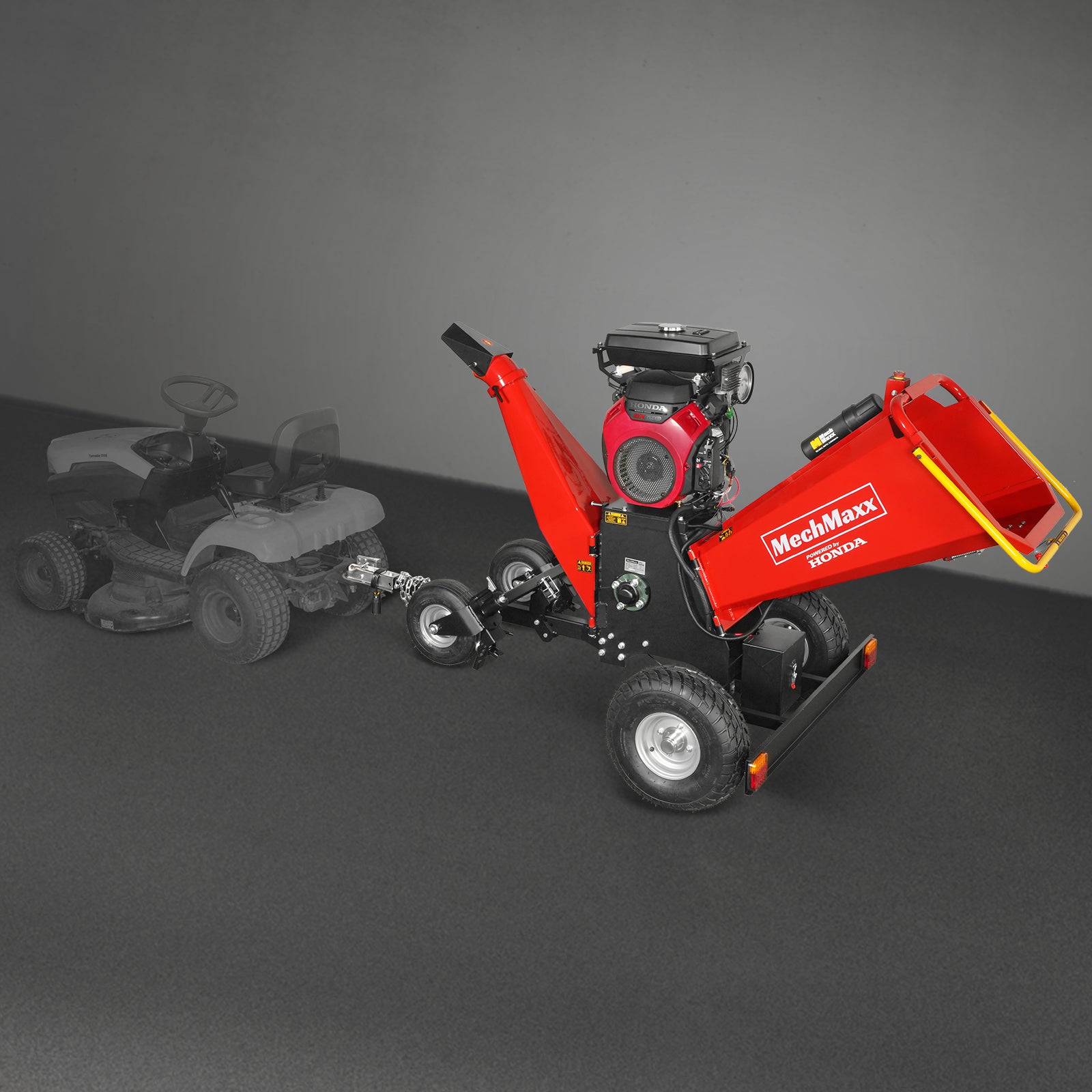

The B200 is equipped with tail light, and on one side of the trailer, there is an American seven-pin plug. The plug can be connected to the towing vehicle when being towed, allowing the tail light of B200 to synchronize with the vehicle's braking and turning signals.

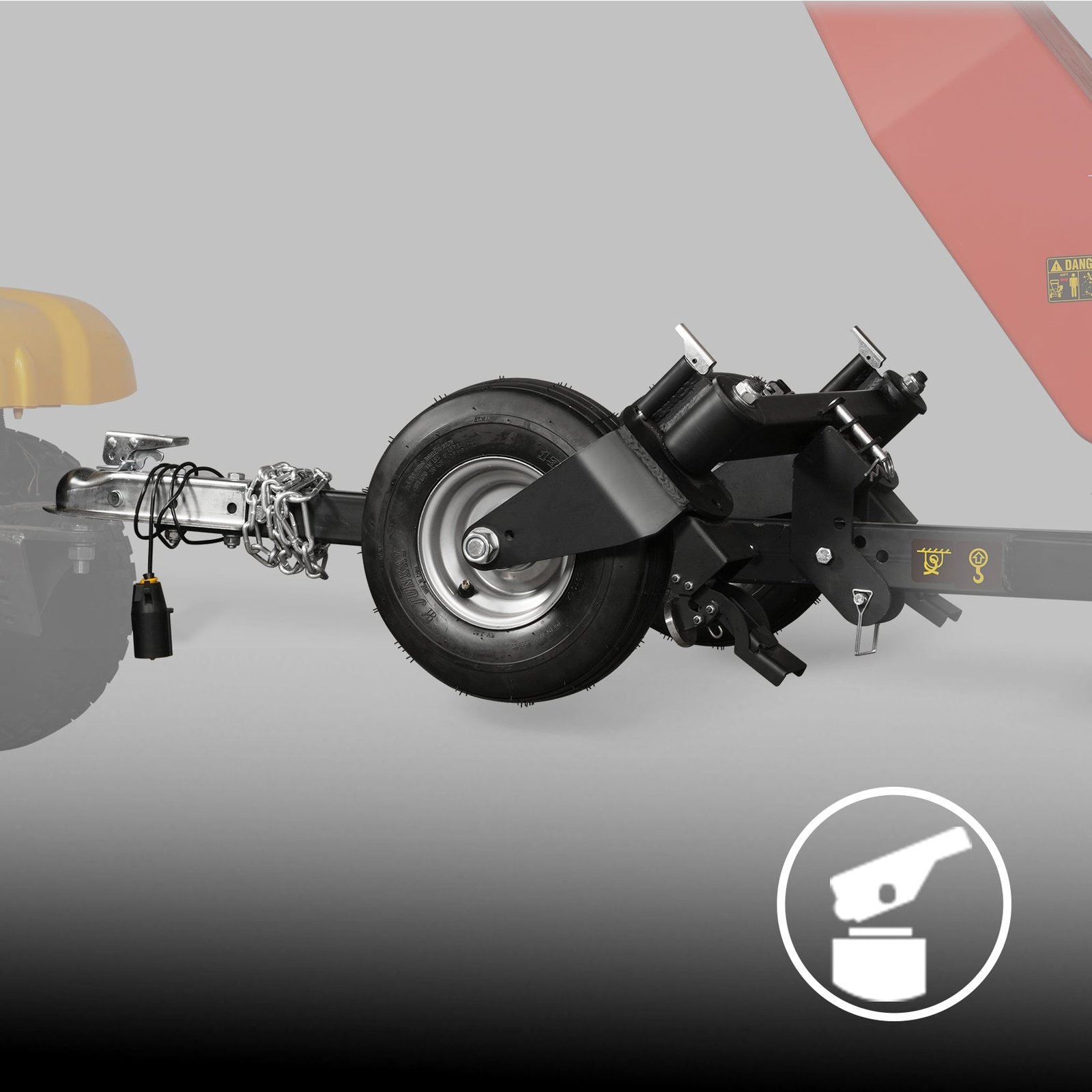

Foldable and Lockable Front Wheels

When the B200 is being towed, the two 13*5.00-6 tubeless tires need to be folded up. When the B200 is operational, they can be lowered. When the B200 needs to be pushed to a designated work area, the two wheels can be locked to ensure straight-line movement.

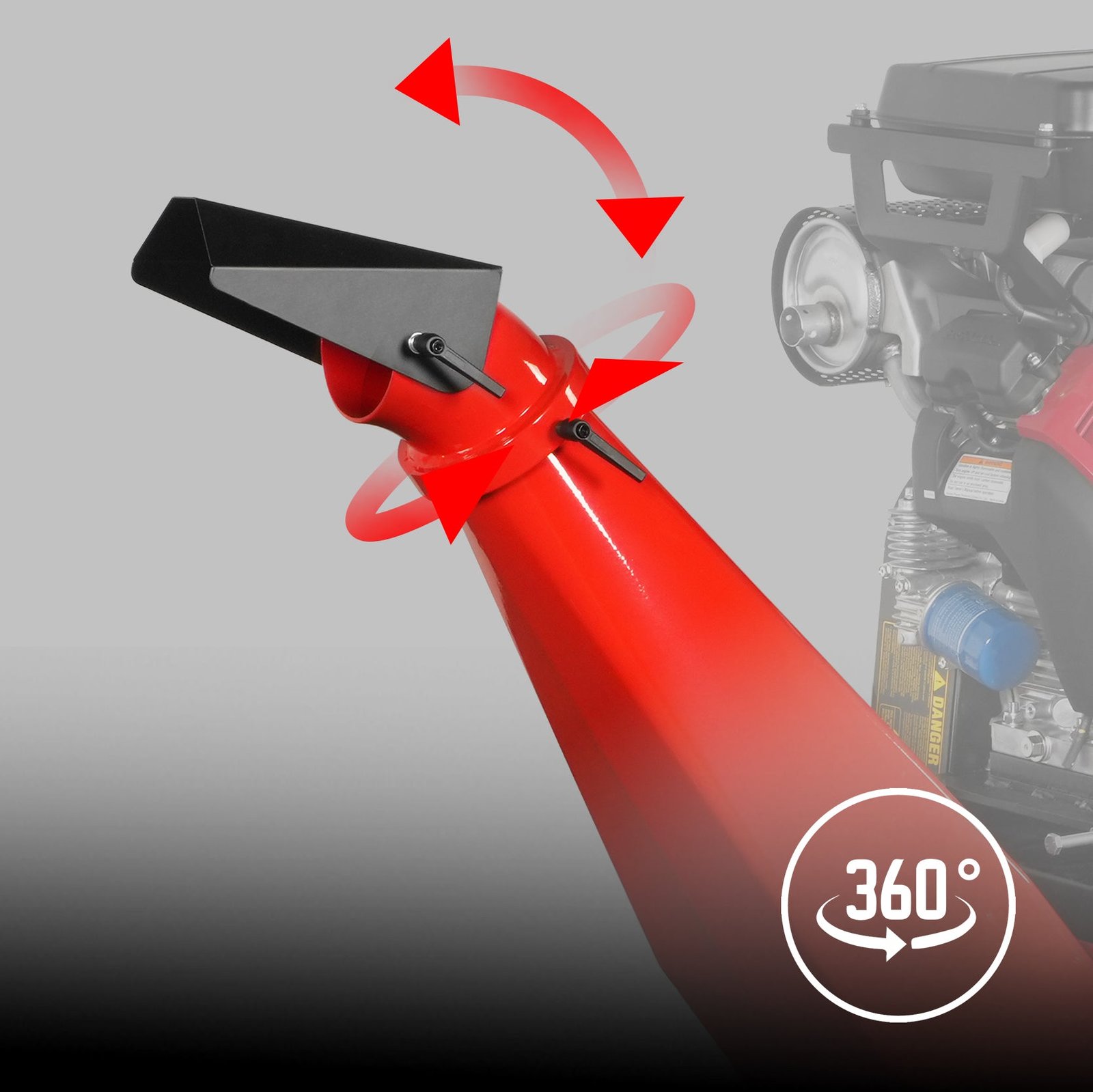

Discharge Chute Design

The entire discharge chute is stamped and welded together from two molds, providing an aesthetically pleasing design. The discharge chute can be fully opened, allowing for a clearer view of the blade box interior for maintenance and blade replacement. The top of the discharge chute can rotate 360 degrees.

Engine	HONDA GX690	Feed Roller	13.8 in
Engine Type	Air cooled 4-stroke OHV petrol engine	Knives Nos.	2 x Blade; 1 x Anvil
Displacement/HP	688 cc; 22 HP	Knives Material	A8 （5Cr8MoVSi）
Rated Power	13.0 kw/3600 rpm	Discharge Chute	360 Degree Rotating
Max. Net Torque	48.3 Nm/2500 rpm	Emergency Stop	Stop Bar + Button

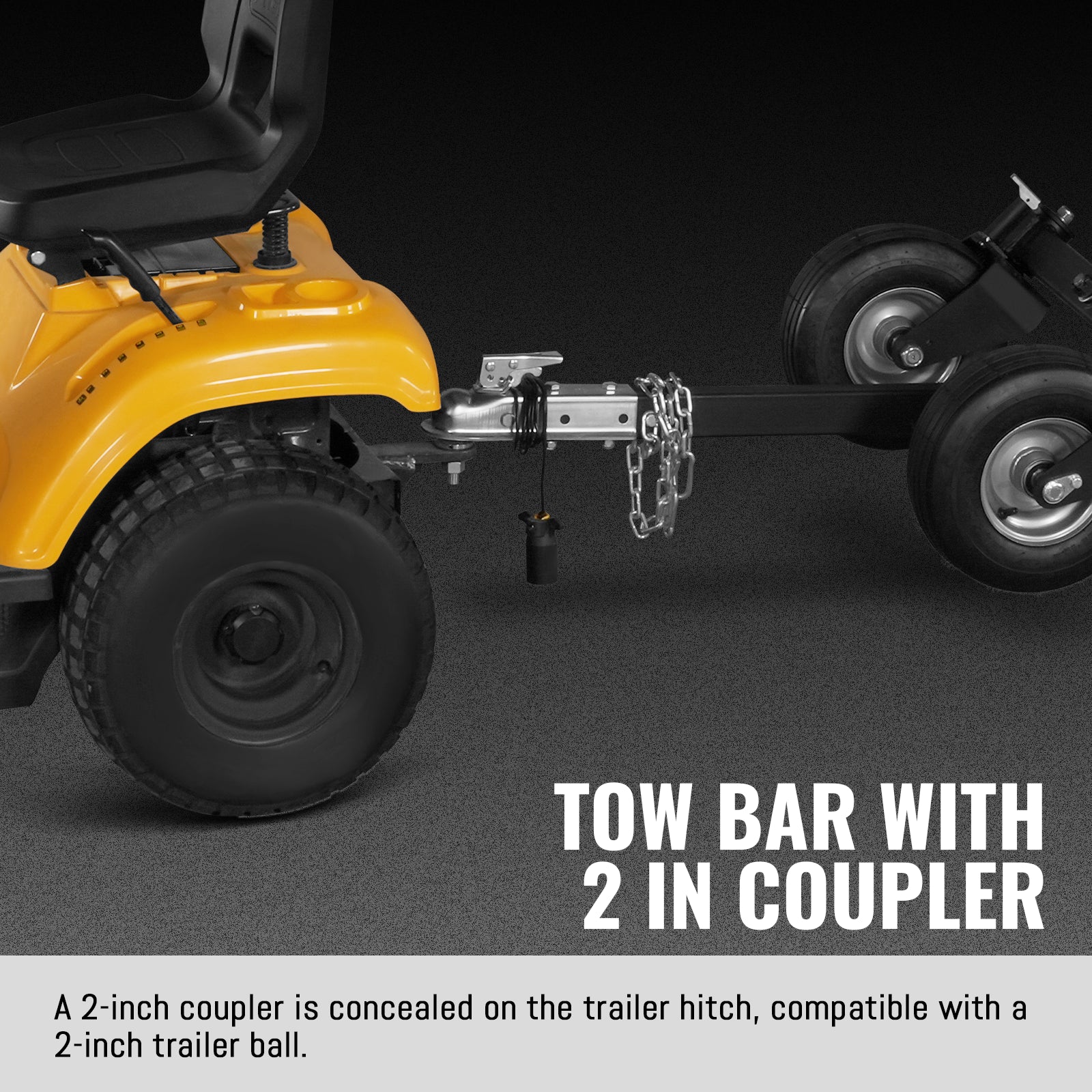

Fuel Capacity	3.17 gal	Towing	Tow Bar with 2 in Coupler
Starting	Electric Starting	Wheel	19*7.00-8 Tubeless
Battery	36Ah 12V Lead-Acid Battery	Wheel Base	48 in
Belt	4 x V-Belts	Package Method	Plywood Case
Belts Material	Kevlar	Weight (N.W./G.W.)	705/780 lbs
Clutch	Centrifugal Clutch	Packing Size (LWH)	50 x 30 x 49 in
Cutting Method	Drum	Machine Warranty	2 Years
Max. Chipping Dia.	8 in	Engine Warranty	2 Years
